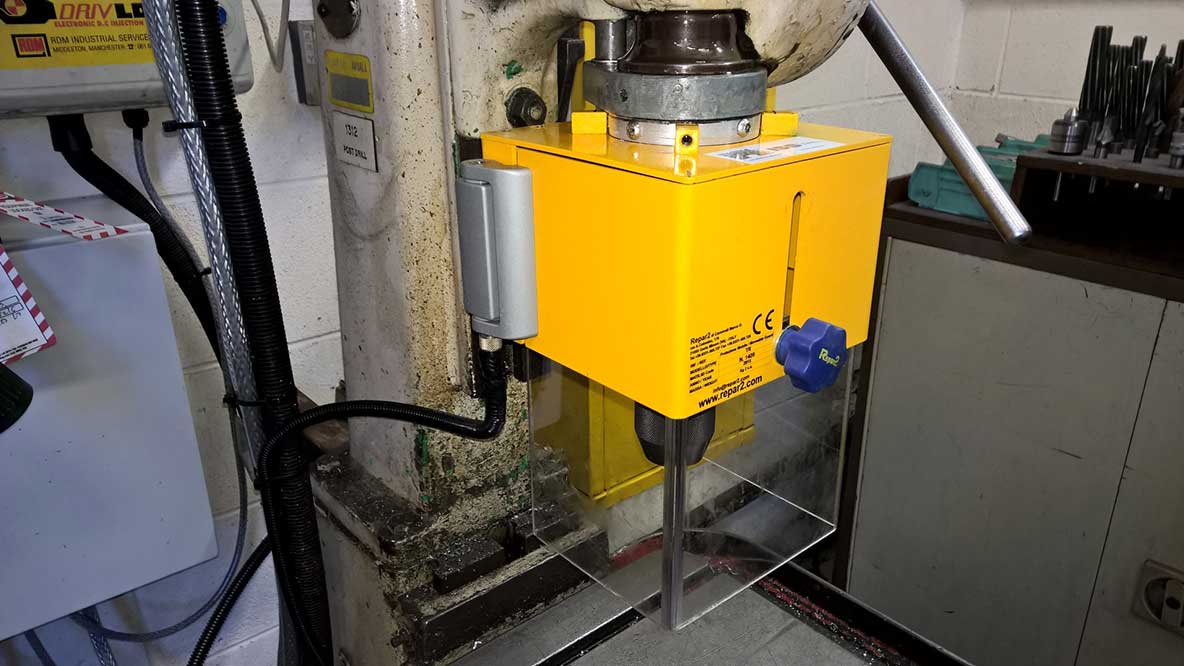

The TRTCM is an interlocked safety guard for drilling and milling machines, designed and manufactured by Repar2.
How it works
The guard attaches to the upper spindle collar. It combines a fixed upper screen in steel with an adjustable lower screen in polycarbonate, giving a complete safety solution that meets current standards for safety-related parts of control systems. Because it is fixed to the spindle collar, it travels down with the spindle and always covers the chuck and the drill bit or cutting tool.
Which machines it fits

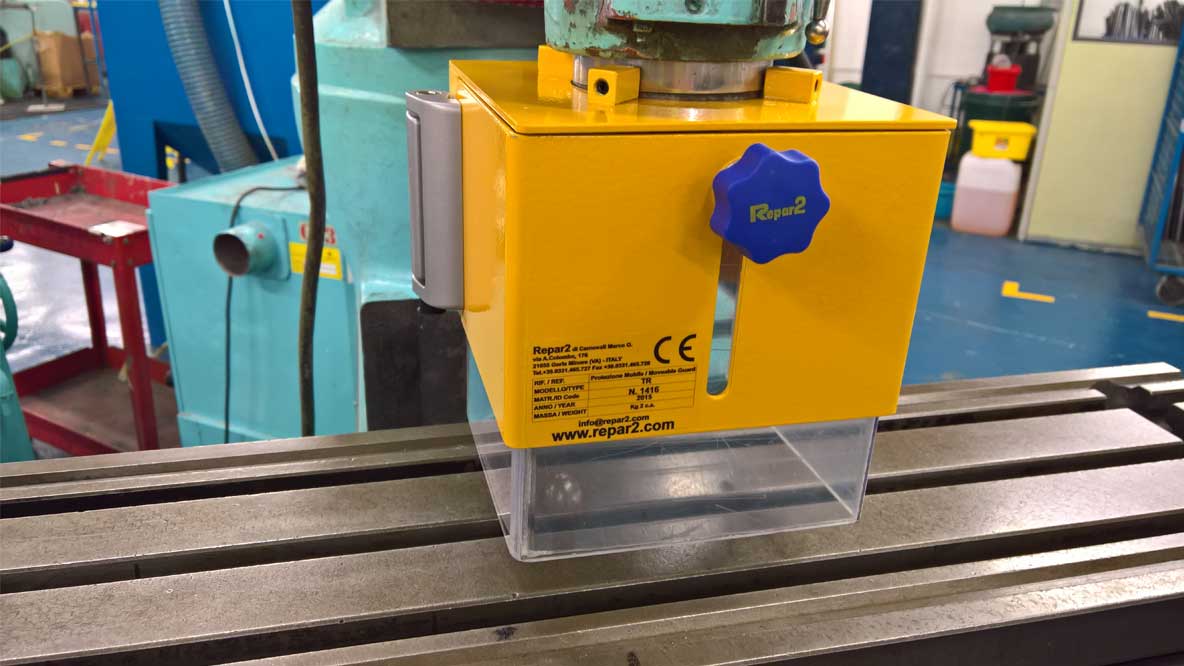

A key feature of the TRTCM is that it fixes straight onto a Bridgeport milling machine. With adaptors it can also be fitted to a wide range of other drilling and milling machines, which makes it an ideal choice for single-station Pollard drilling machines, for example.
Features at a glance
- Cutting-edge Italian design
- Adaptable to a variety of drilling and milling machines
- Made from robust steel and polycarbonate
- 360° cover around the chuck and drill bit or cutting tool

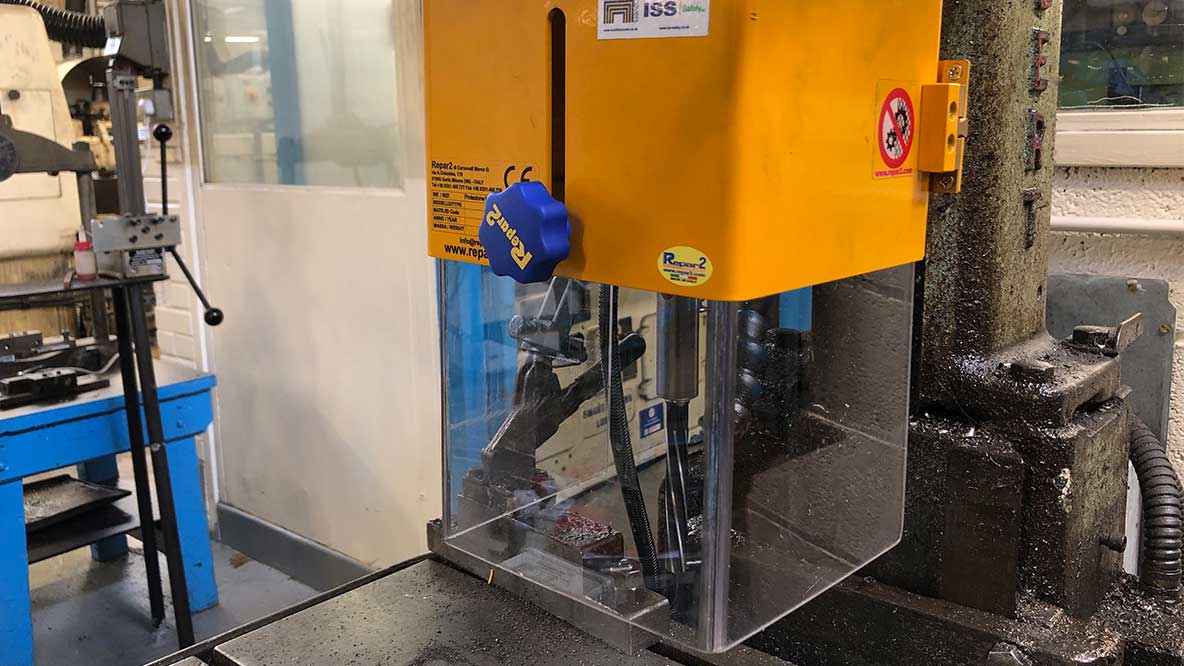

- Height adjustable via the integral polycarbonate screen
- Manual locking with a micro switch
- Opens fully, so it does not get in the way if a drift is needed to remove the chuck or cutting tool
- Optional DC injection braking
- Optional dual-channel safety control panel with safety relays, for redundancy and fault tolerance
- Optional additional e-stop or kick-stop
Explore more on our drilling machine safety guards and milling machine safety guards pages.
Not sure what your machine needs? Send us a few photos of the machine through our contact page and our team will review them and recommend suitable guarding.
