TOP Line Universal Machine Guards
These are fully-articulated counterbalanced machinery guards with LED lighting. Different protective screens are available to suit the application, each with an IP-rated LED light.
The counterbalanced screen can be moved both vertically and horizontally into the required location with interlocking options available. There is an optional floor fixing column which is adjustable in height from 1200mm to 1600mm.
UNIVERSAL MACHINE GUARD – ‘TOP’ MODEL

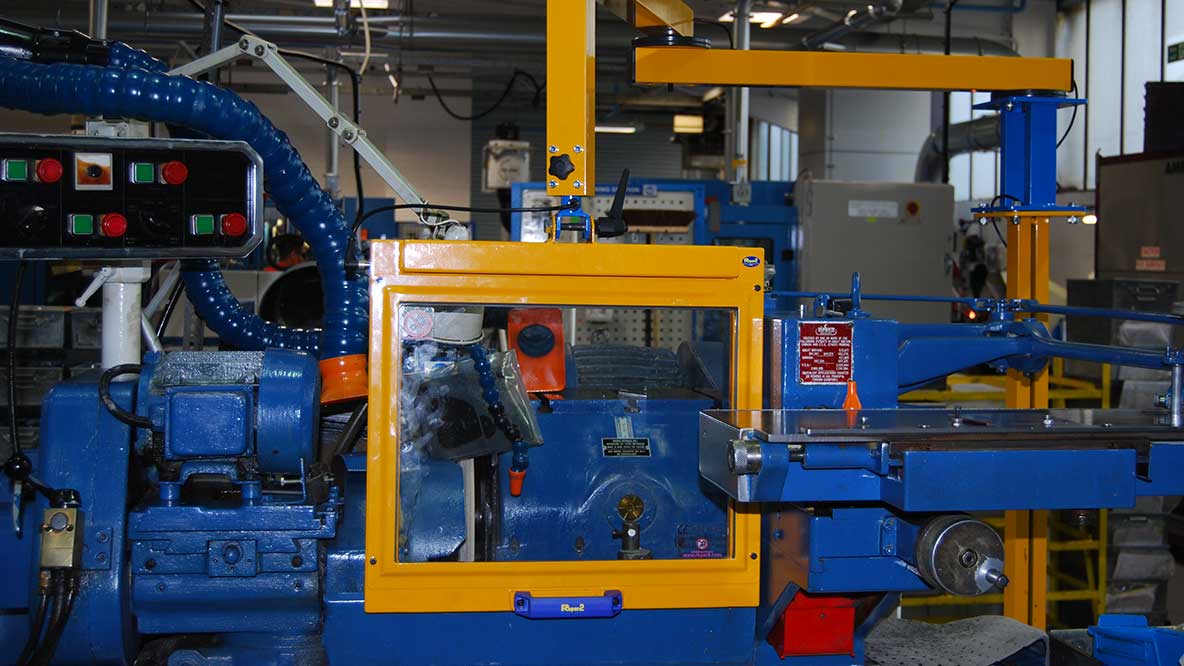

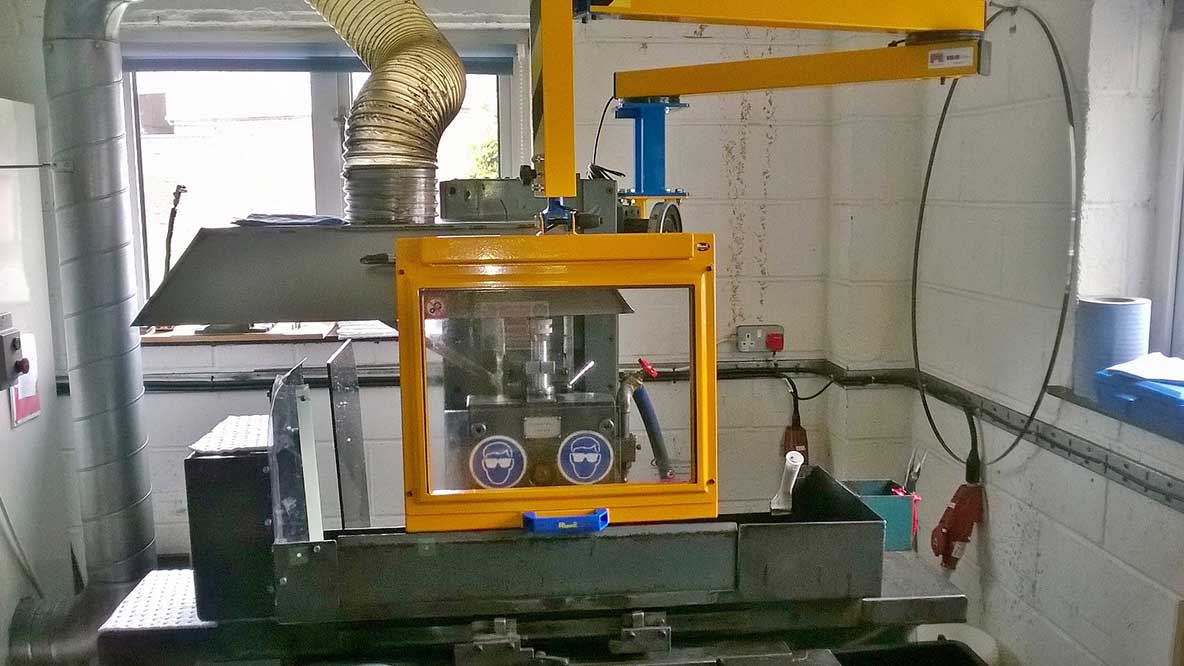

Universal safety guard for large milling, drilling and turning machines. Specialist applications as well. The TOP guard and MCL post 25400c are suited to all types of grinding machines.

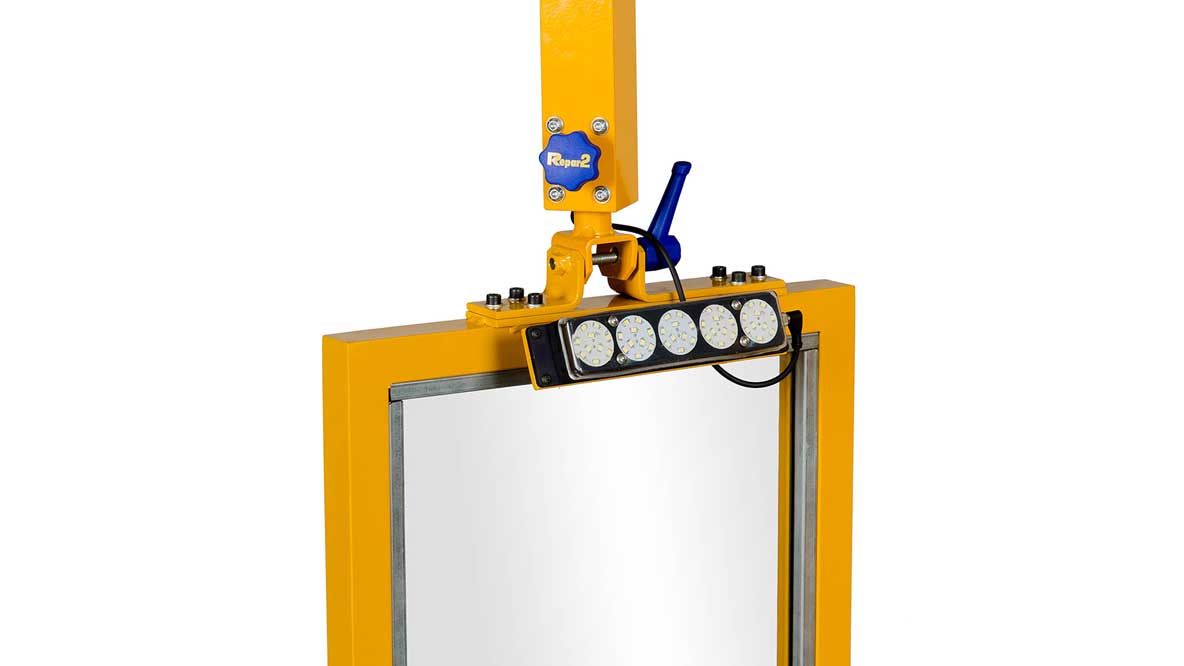

The steel TOP framed guards or screens are fitted with laminated safety glass or with impact-resistant polycarbonate windows if requested. They lift vertically, swing and tilt to your chosen position and are fully counterbalanced, thus avoiding any manual handling issues. There is a range of screen or guard models available as standard – led lighting and different micro switch combinations can be selected. Each model and option required is determined by the part number specified.
