Off-hand Grinders
BS EN ISO 16089
The basics:
- protection against material ejection
- protection against contact with the wheel
- drive cover (fixed or interlocked)
- emergency stop
- protection against impact hazard

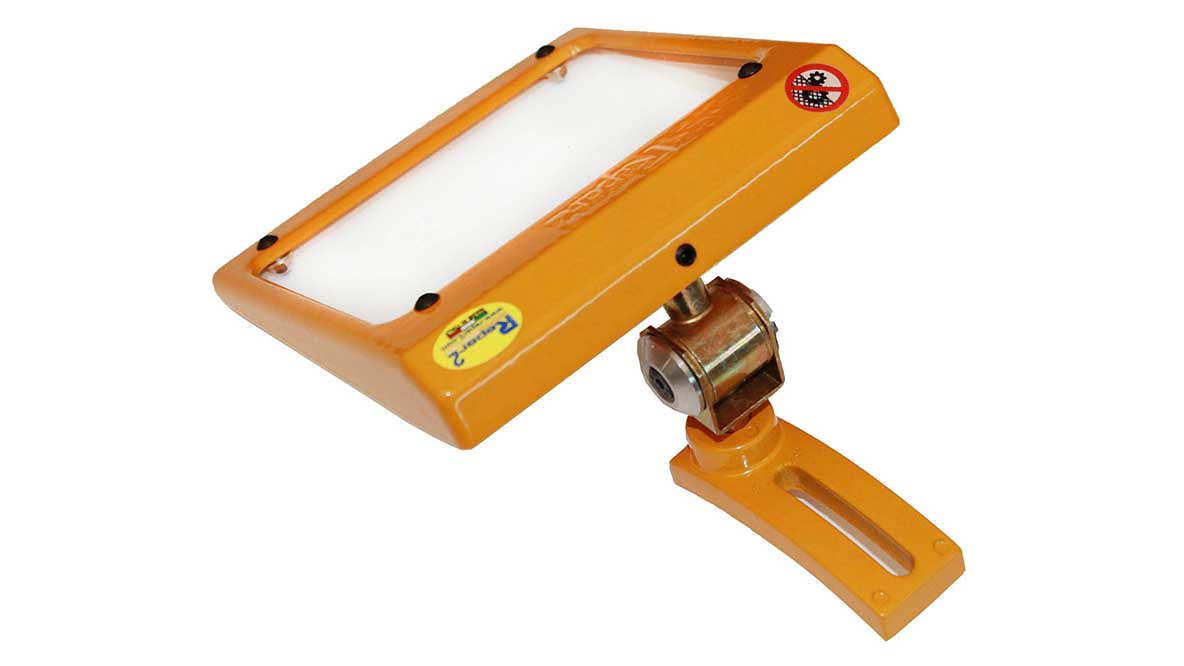

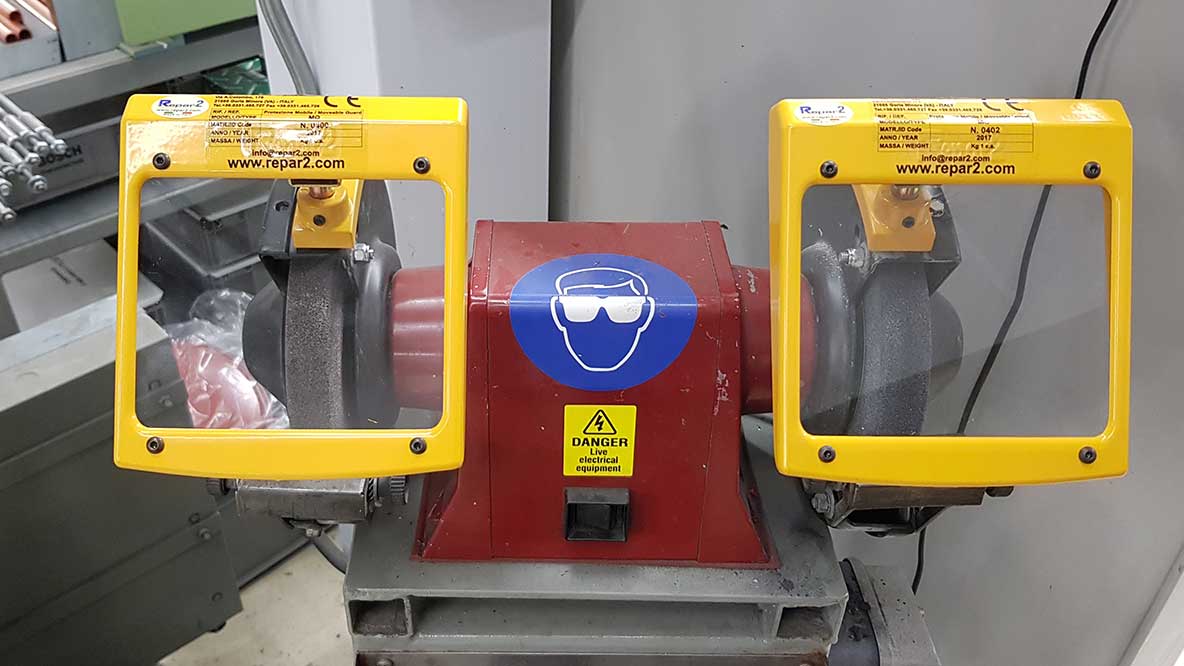

GRINDER GUARD – ‘MO1’ MODEL
Safeguard for 6″ grinding machines, supplied with clutch.
Consists of aluminium frame with polycarbonate screen.
Screen size: 130 mm x 130 mm. Easily fitted.

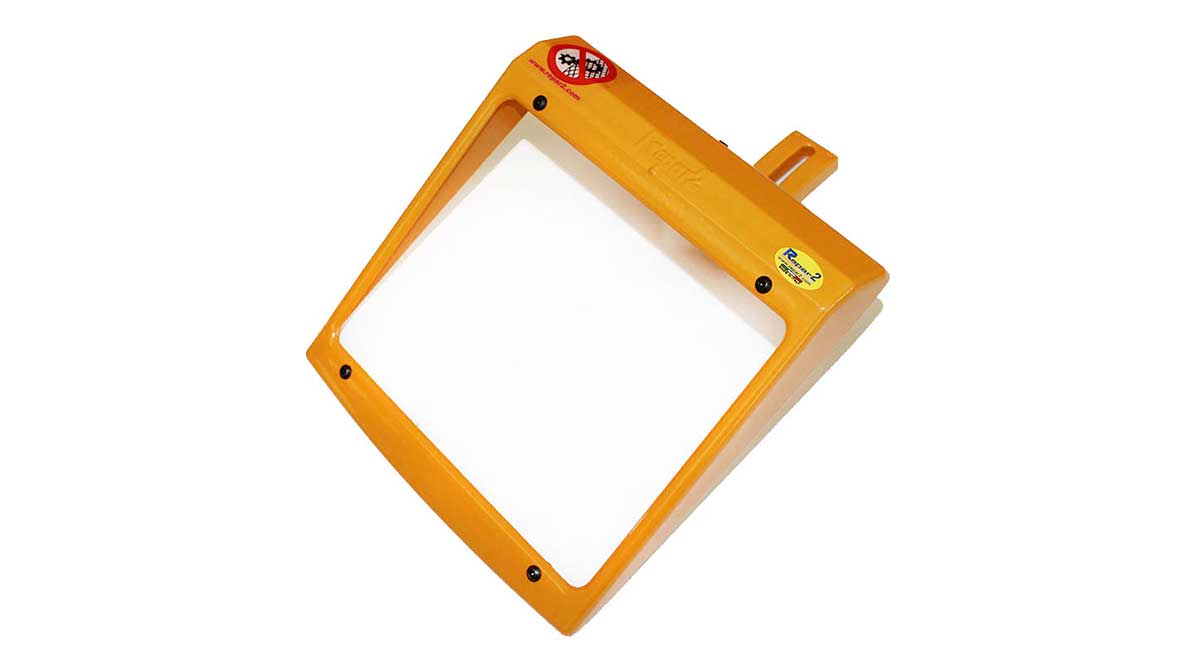

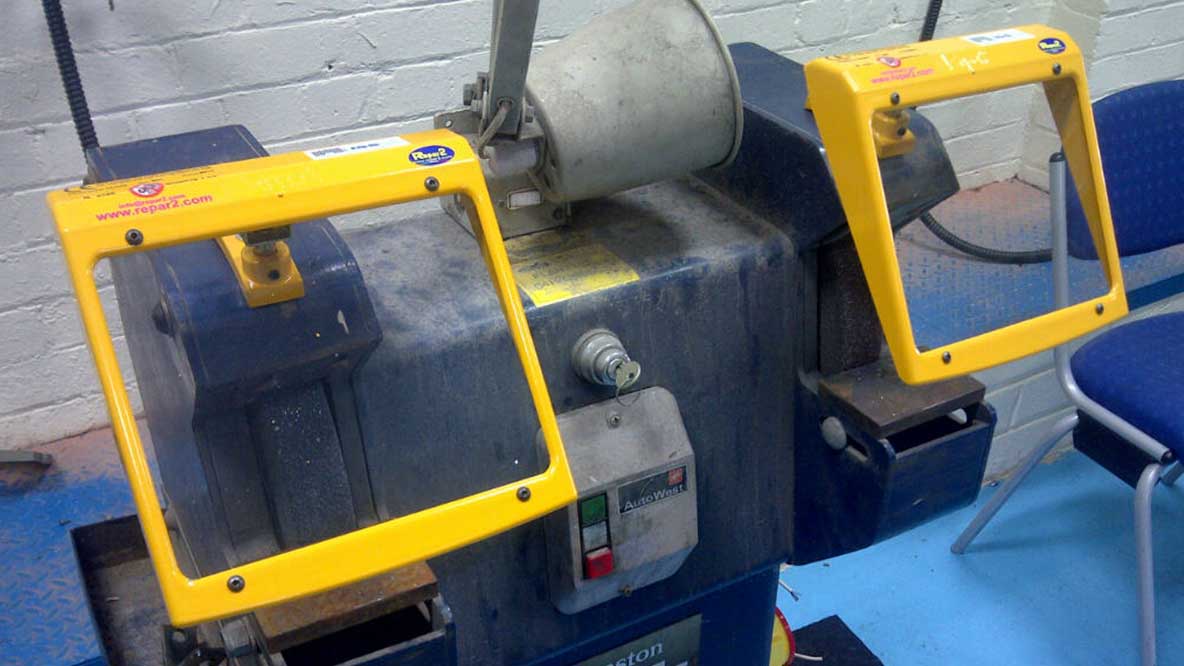

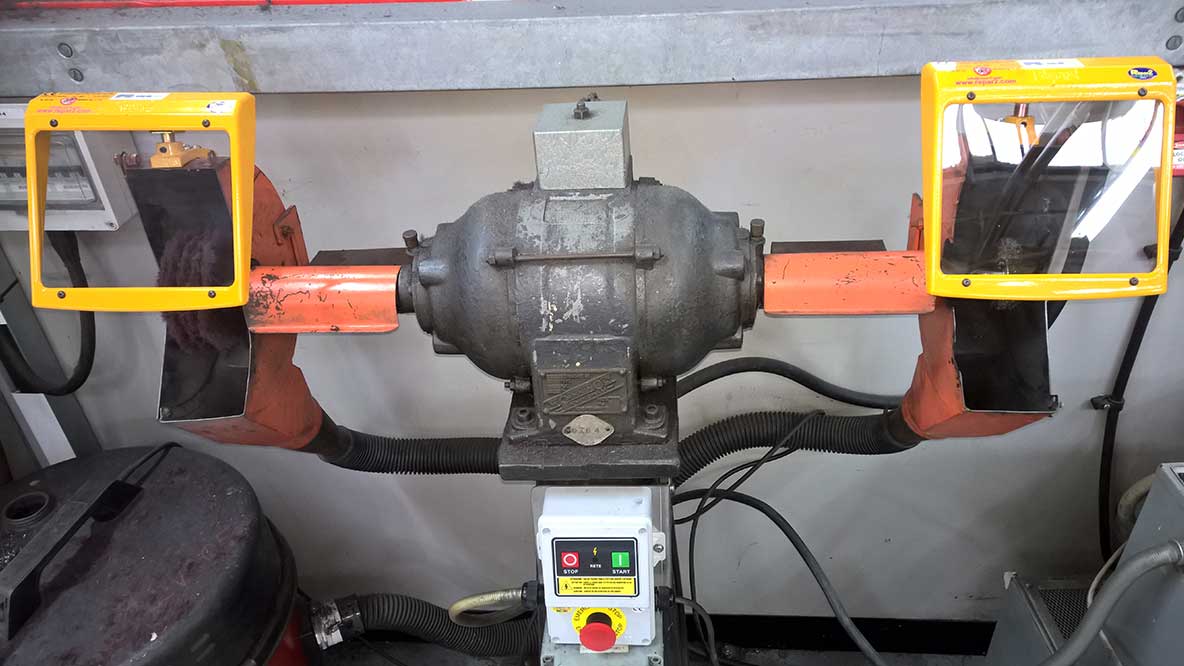

GRINDER GUARD – ‘MO2’ MODEL
This is a strong and robust single-screen guard that protects the grinding machine operator from liquids, hot chips and rotating machine parts.
It is fitted with a 150mm x 180mm polycarbonate screen as standard.

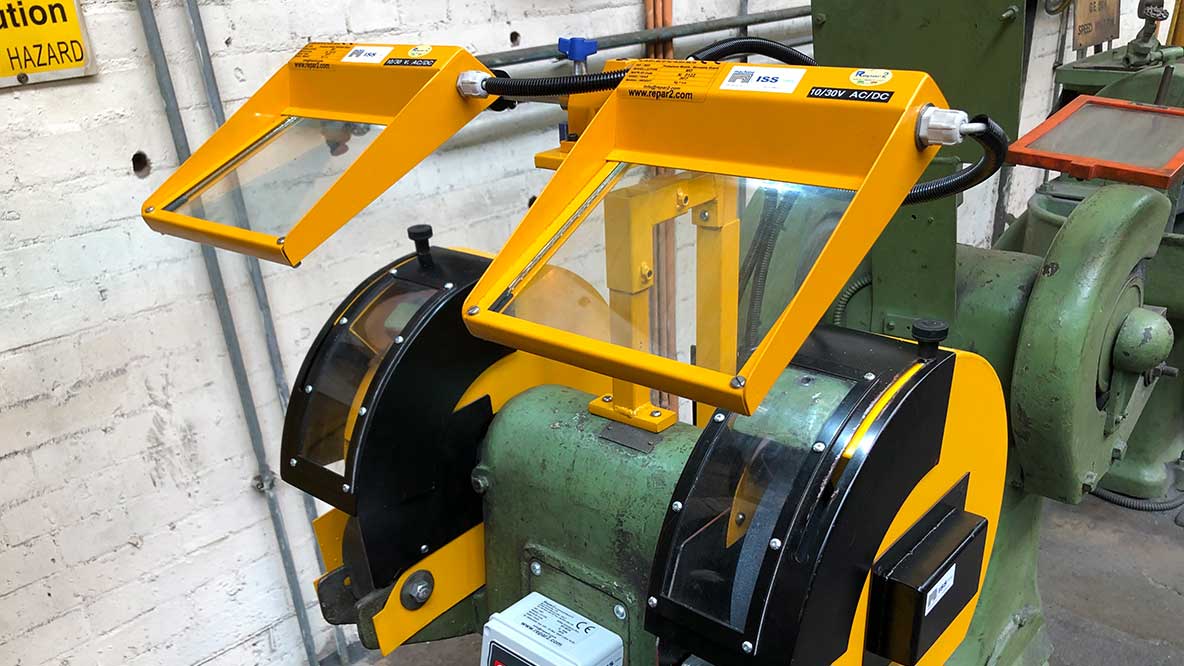

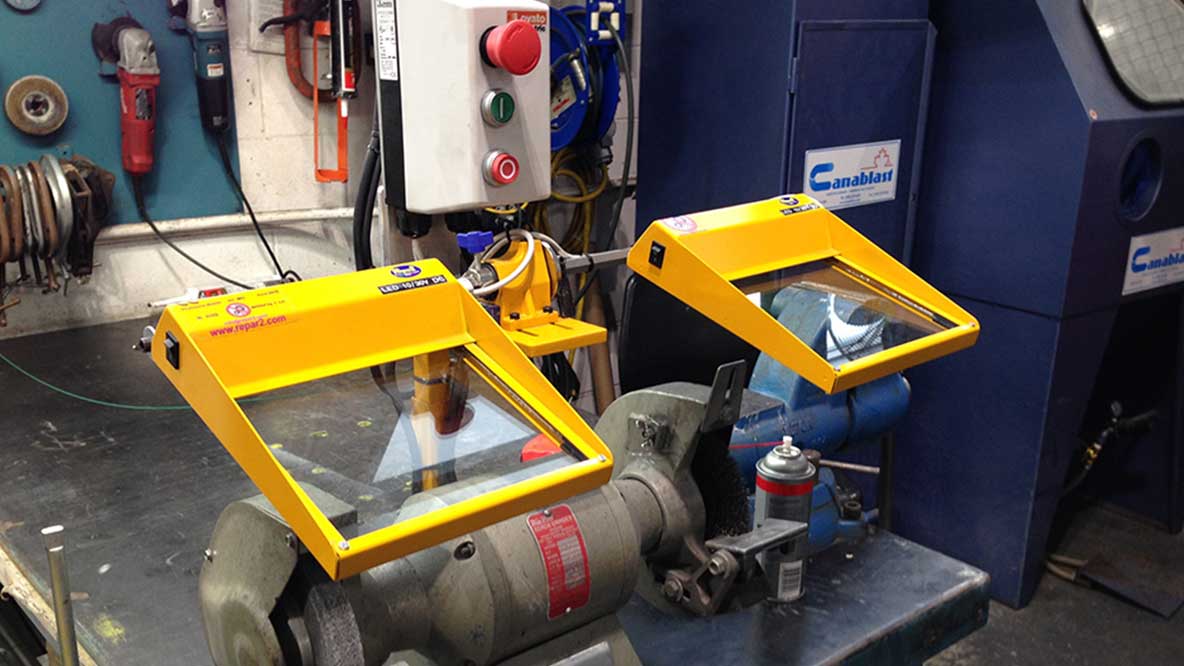

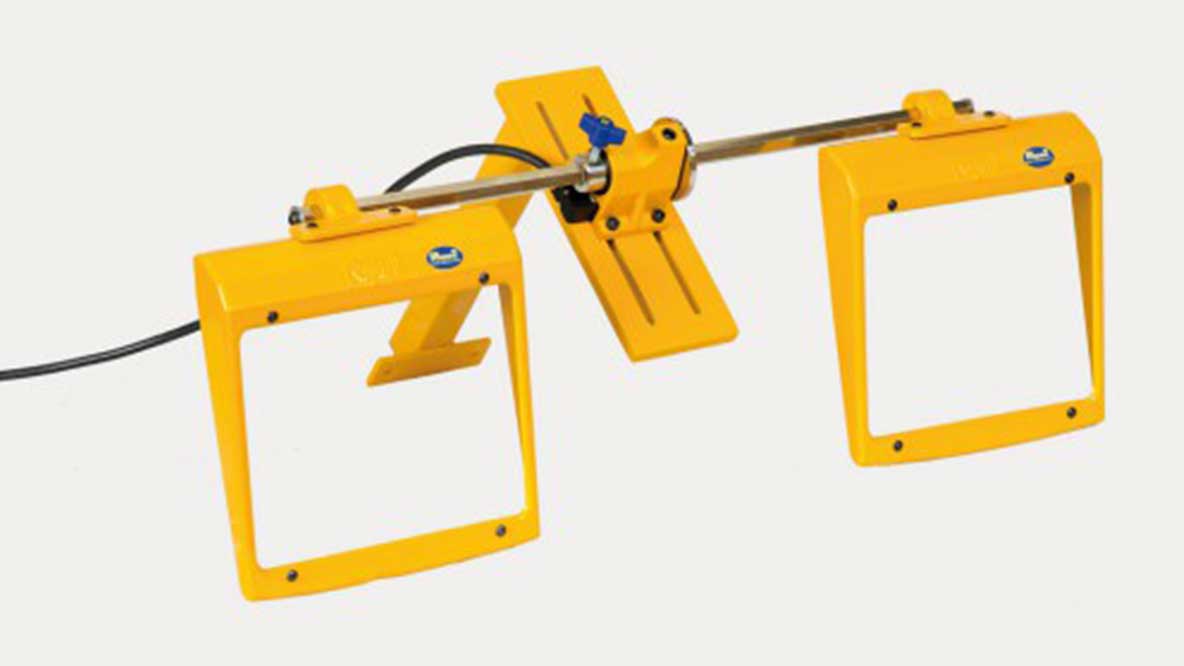

GRINDER GUARD – ‘MO2-DS’ MODEL
Pair of interlocked safeguards for grinding machines, supplied with clutch and complete with microswitch system.
Screen size: 140 mm x 180 mm.

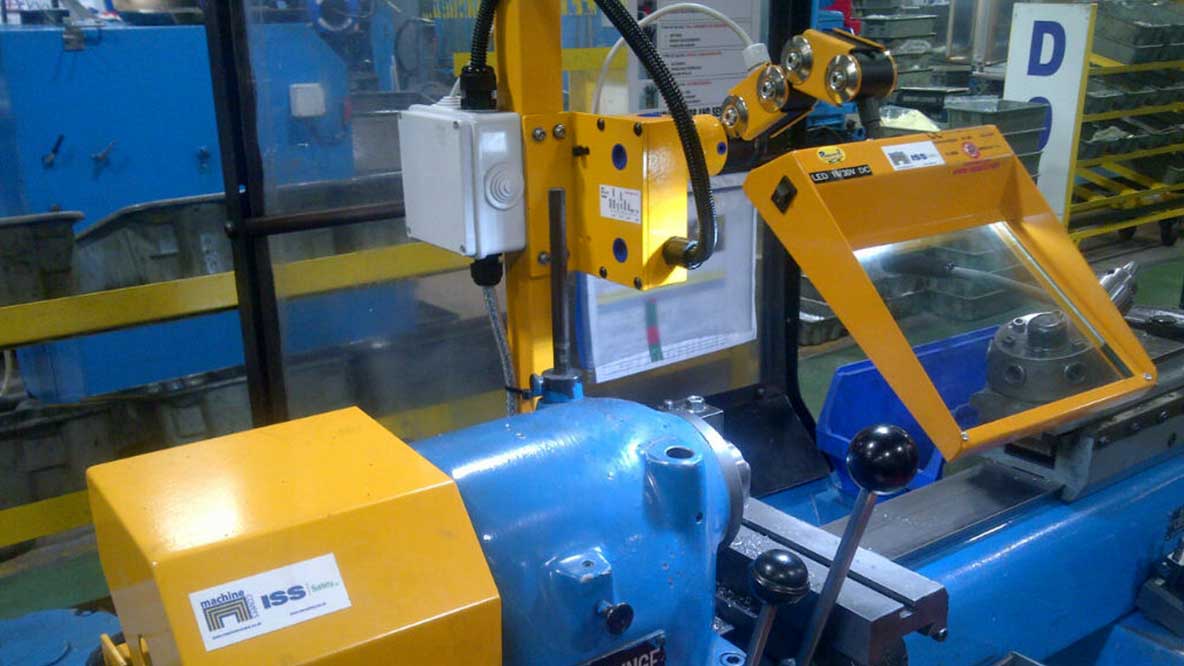

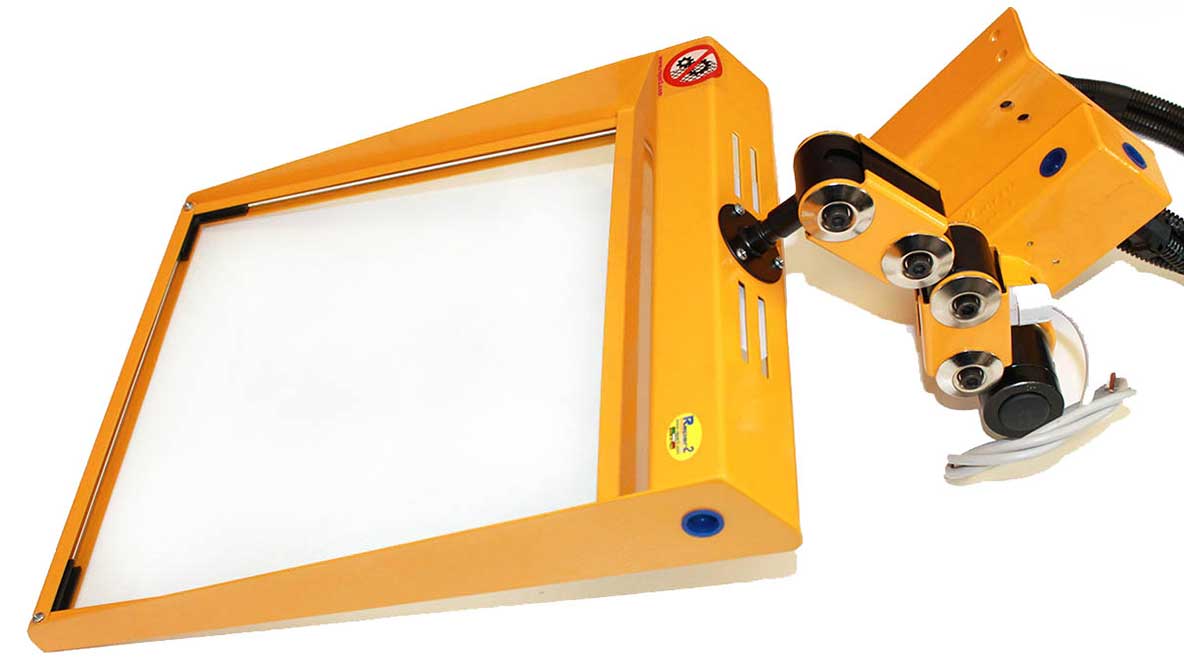

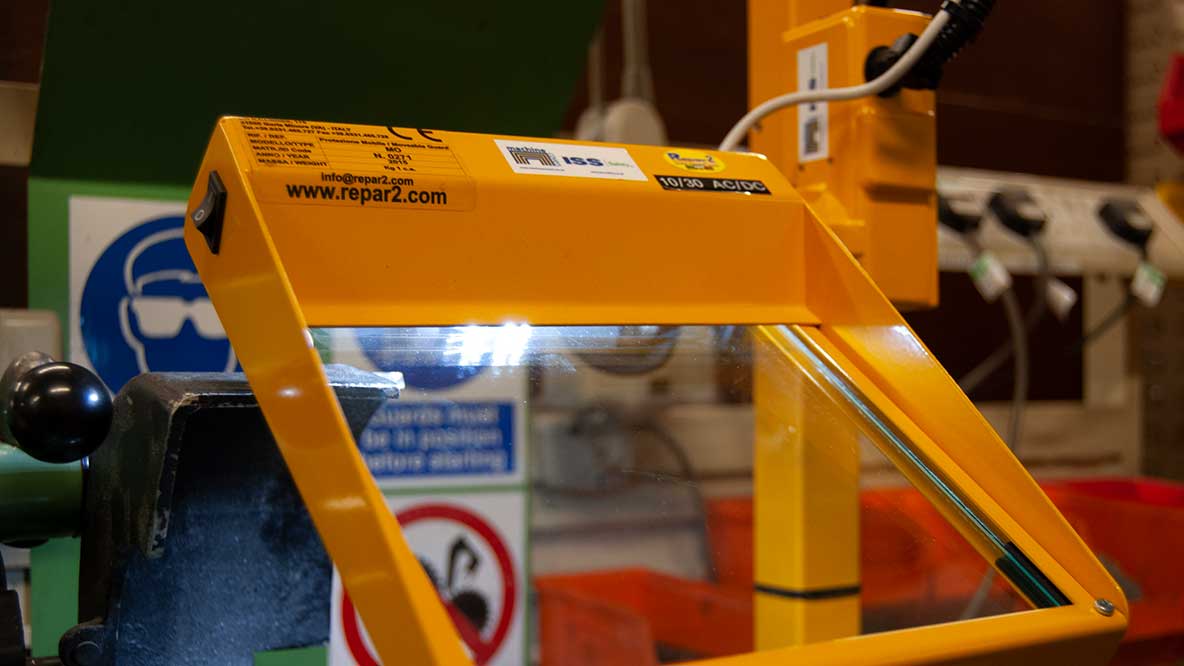

GRINDER GUARD – ‘MO2LCMA3’ MODEL
This is a very robust single-screen guard that is interlocked to aid protection for the grinding machine operator from liquids, hot chips and rotating machine parts. It is fitted with a 200mm x 180mm, 3+3mm-laminated glass screen as standard.
This model has an IP 67 2NC + 1NO micro switch (code MIC 001) located in the A3 mount to ensure that the screen must be in place before machine start up.

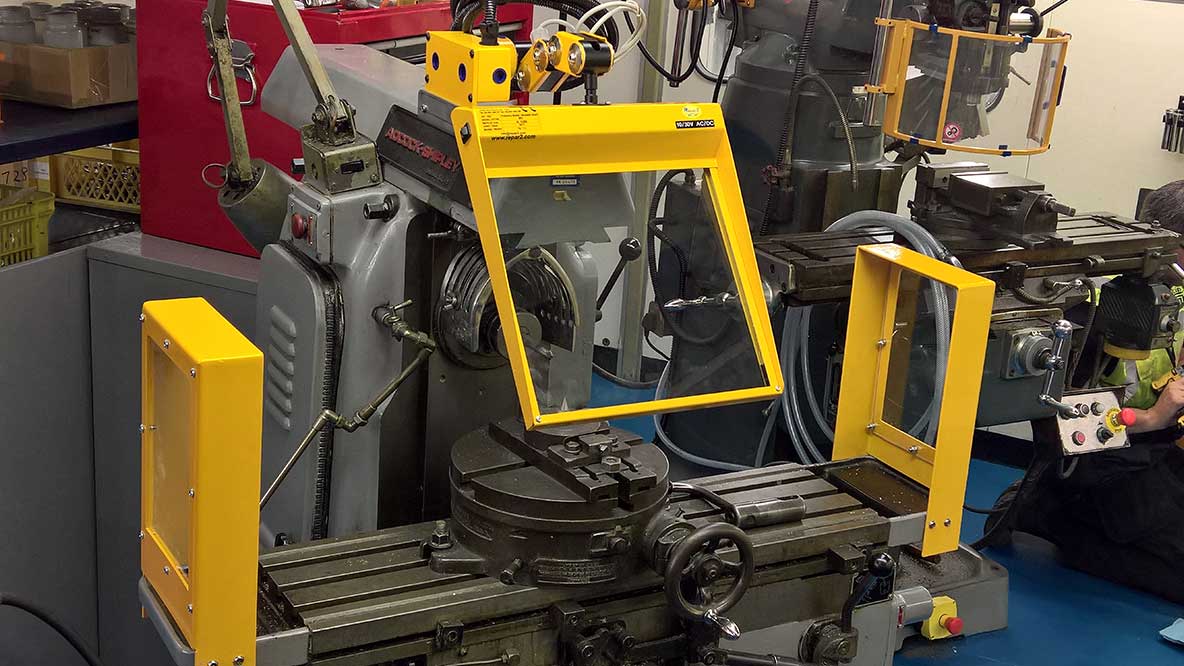

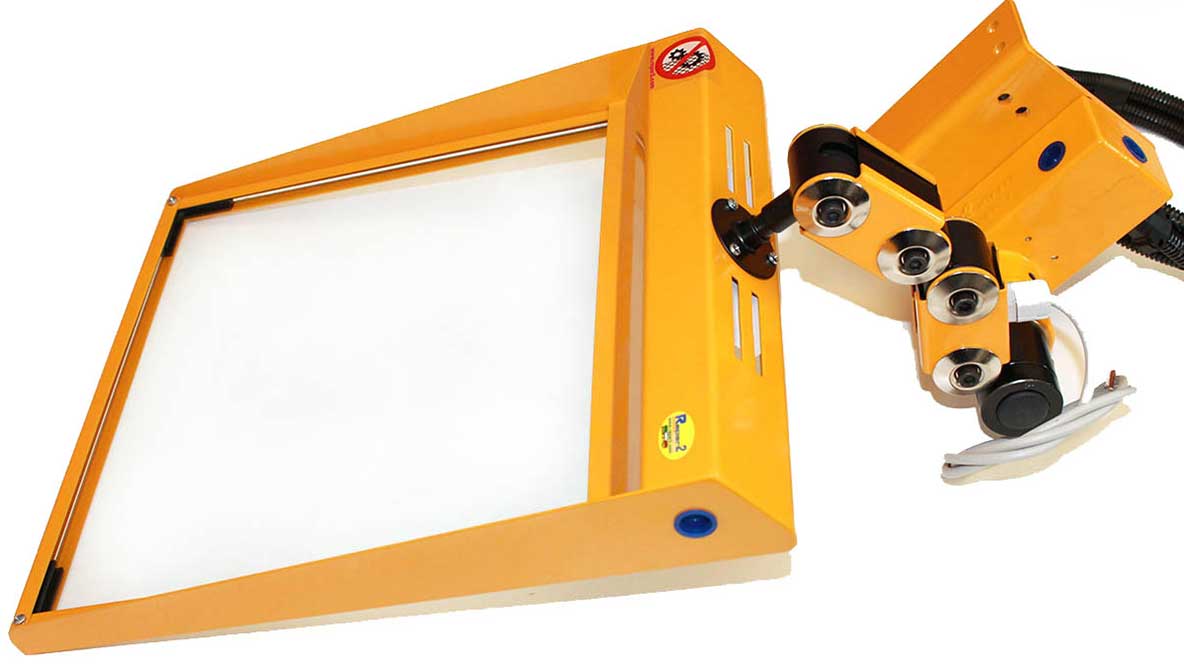

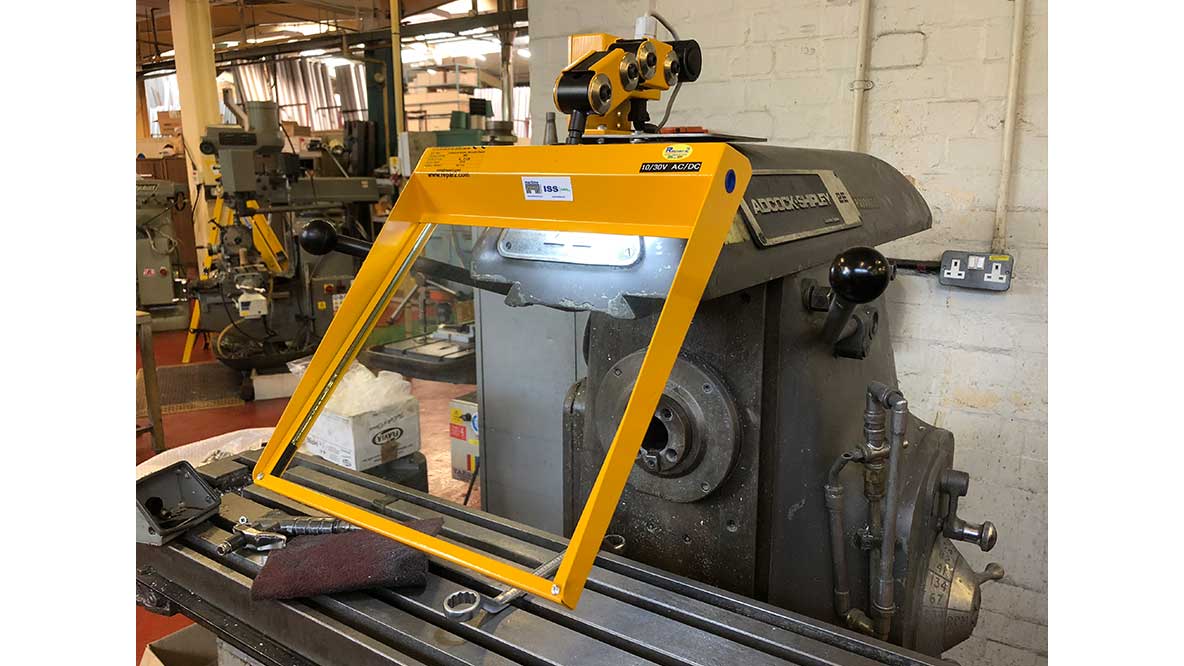

GRINDER GUARD – ‘MO3LCMA3’ MODEL
This is a very robust single-screen guard that is interlocked to aid protection for the grinding machine operator from liquids, hot chips and rotating machine parts. It is fitted with a 280mm x 255mm, 3+3mm-laminated glass screen as standard.
This model has an IP 67 2NC + 1NO micro switch (code MIC 001) located in the A3 mount to ensure that the screen must be in place before machine start up.
