Lathes / Turning Machines
BS EN ISO 23125
The basics for manually-operated lathes
- interlocked chuck guard
- feed and lead screw protection
- saddle or splash guard if the risk of ejection demands it (risk assessment)
- rear fixed guard
- emergency stop
- spindle braking above 1.5hp
- gear drive cover (fixed or interlocked)
The basics for CNC lathes
- full enclosure with interlocked point of operation access (Additional access points for maintenance and infrequent access may be fixed so a tool is required to remove.)
- provision for set-up mode with hold to run or two-hand control with reduced speed movement
- exhaust extraction (if risk assessment demands it – depends on levels of cutting oil/coolant mist generated)
- strong, properly-maintained vision panels capable of withstanding foreseeable ejections
- emergency stop

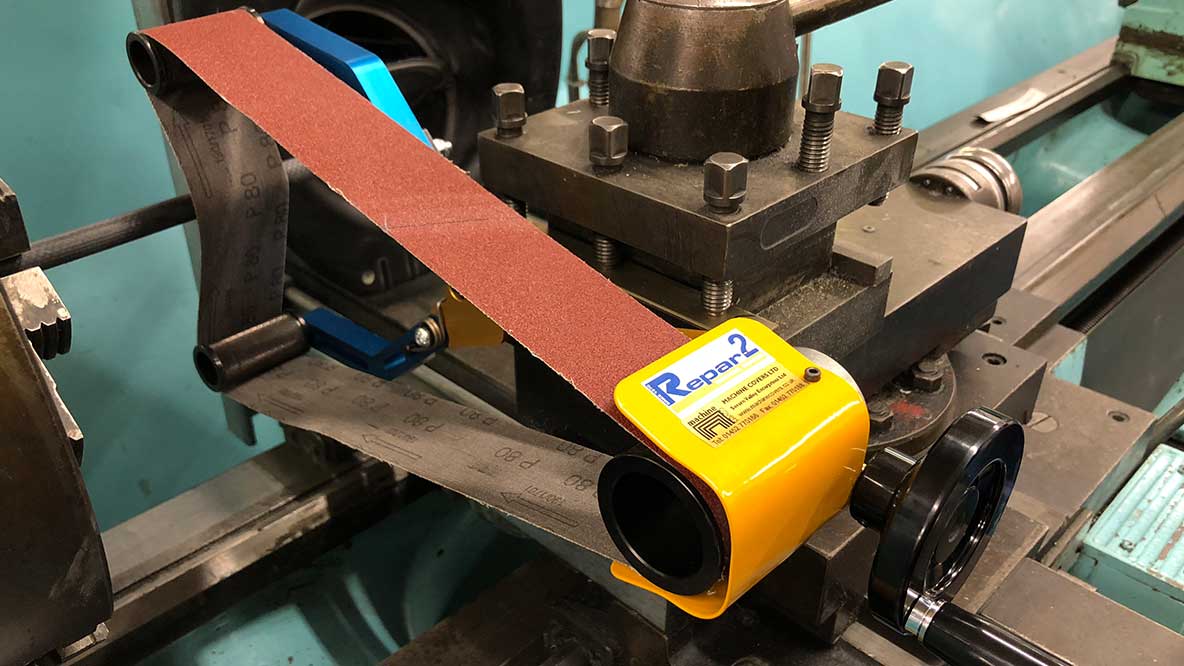

SPIDER 50 & SPIDER 75

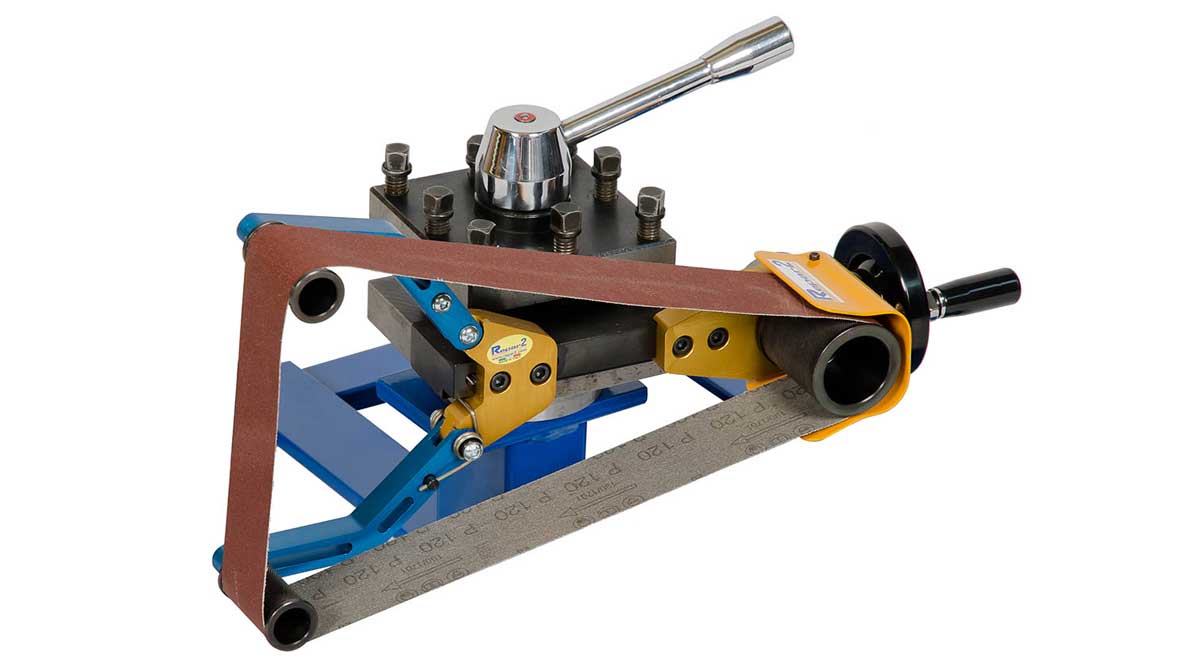

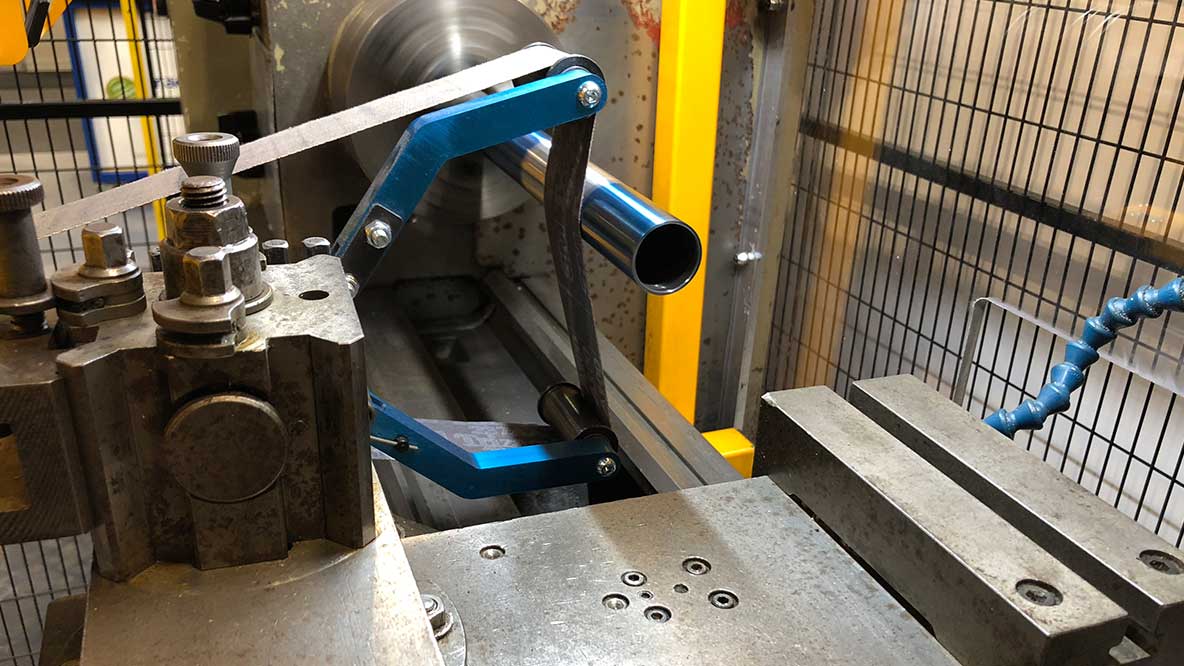

The Spider 50 and Spider 75 were conceived in accordance with ISO23125 Standards 6.2.1 (no use of hands during working operations). There is no longer any need to undertake dangerous sanding operations by hand with risk of serious accidents caused by holding emery cloth or sanding pads.
The Spider is simple to fit, no different to fitting a conventional cutting tool to the lathe tool post.

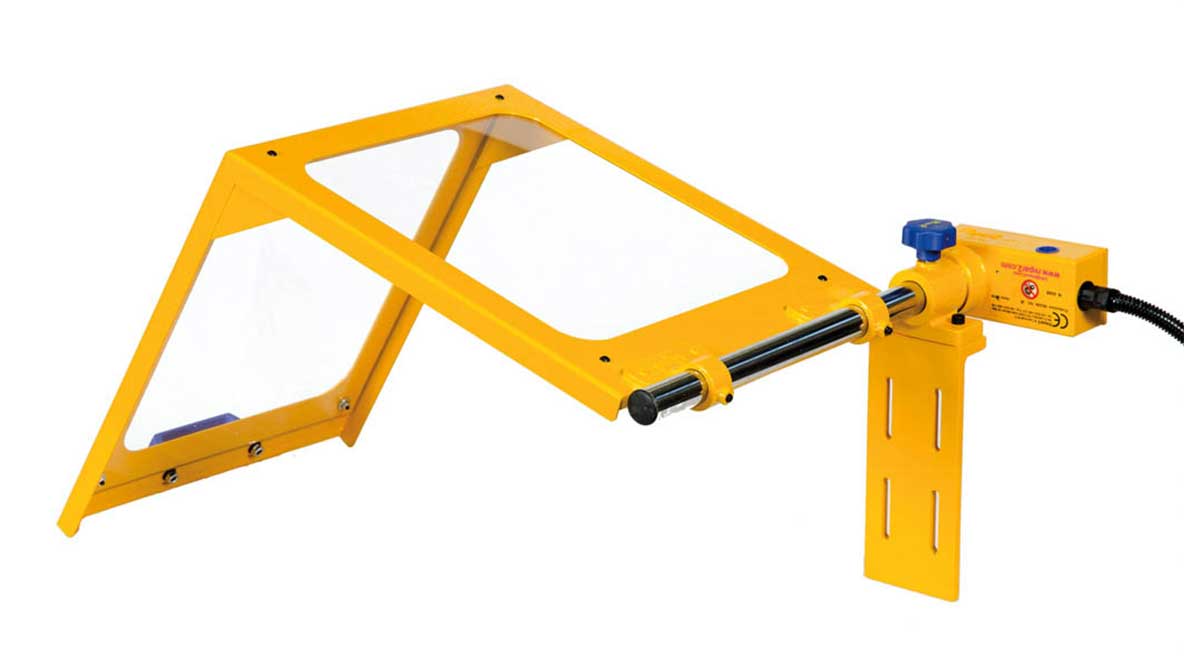

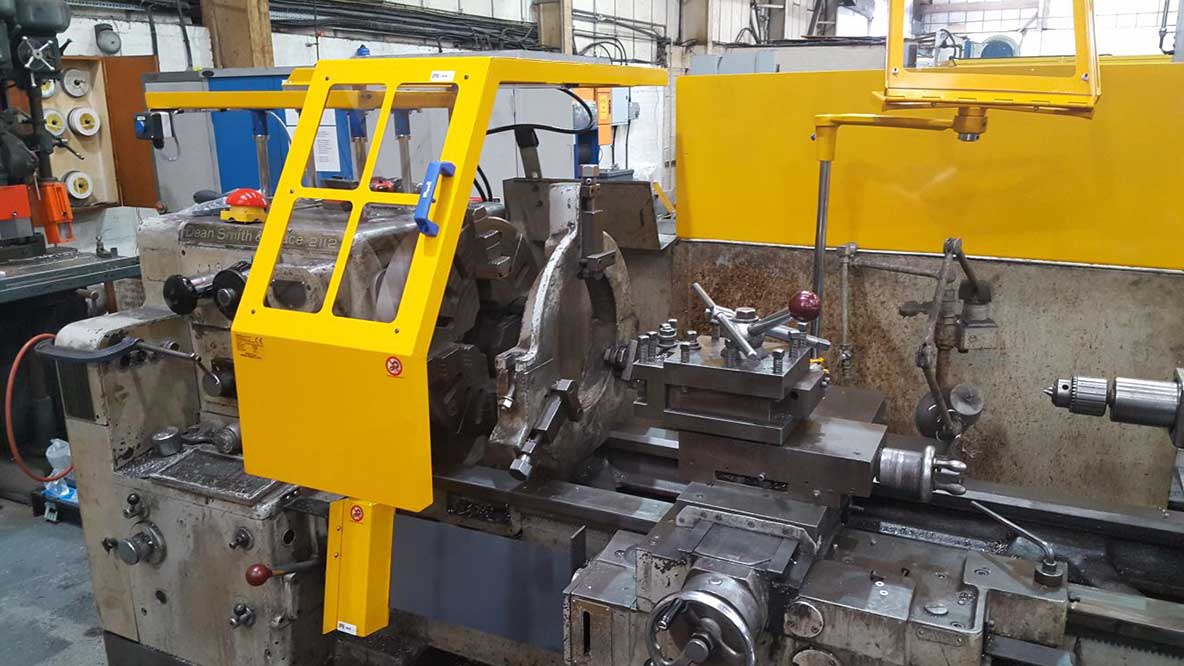

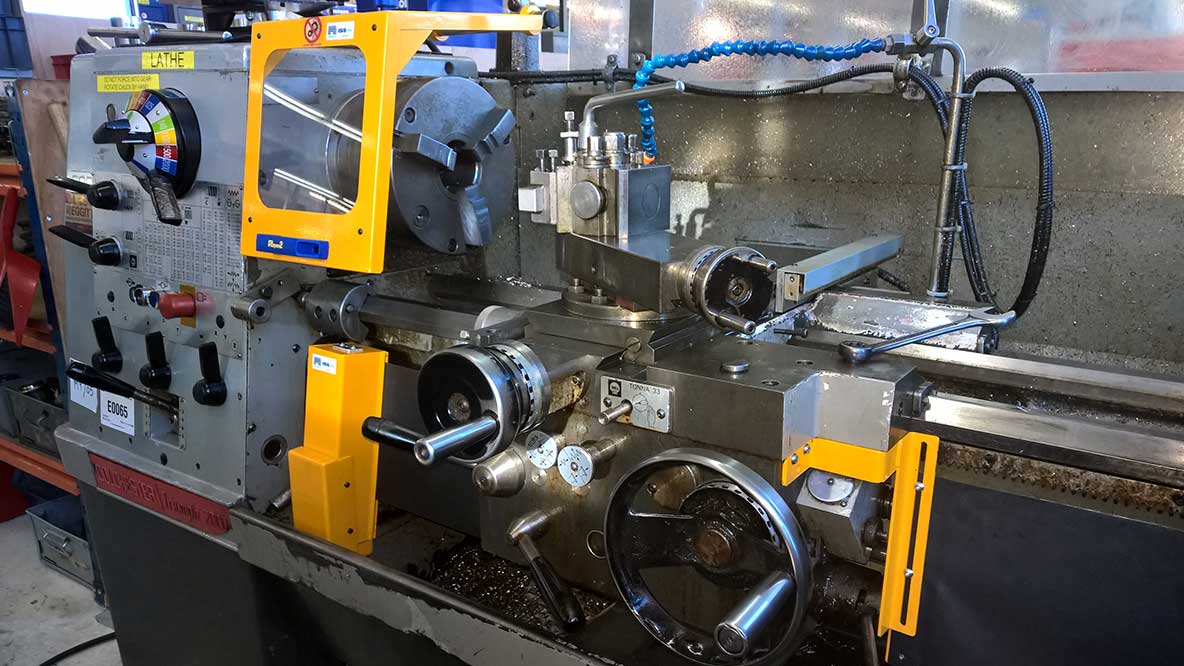

CHUCK GUARD – ‘IE’ MODEL

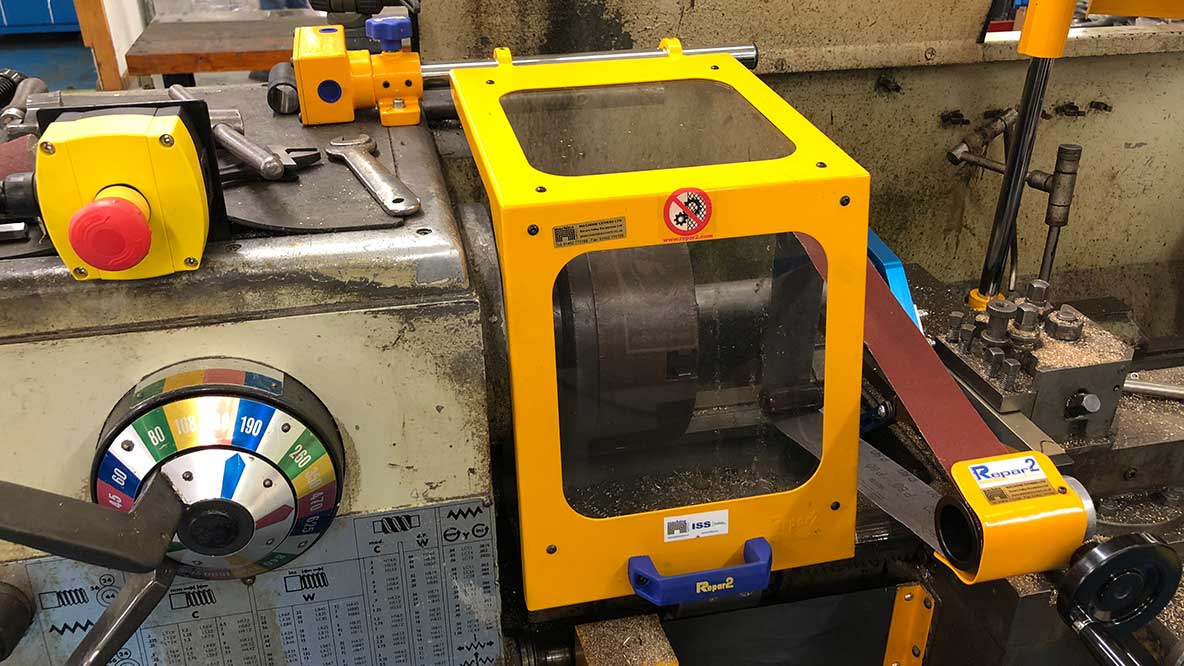

Safety guard for lathe chuck with steel structure.
The flat screens can be either polycarbonate or laminated glass, equipped with safety microswitch and fixing support for a perfect fitting near the lathe head-stock.
Two standard sizes available: IE/A or IE/B.

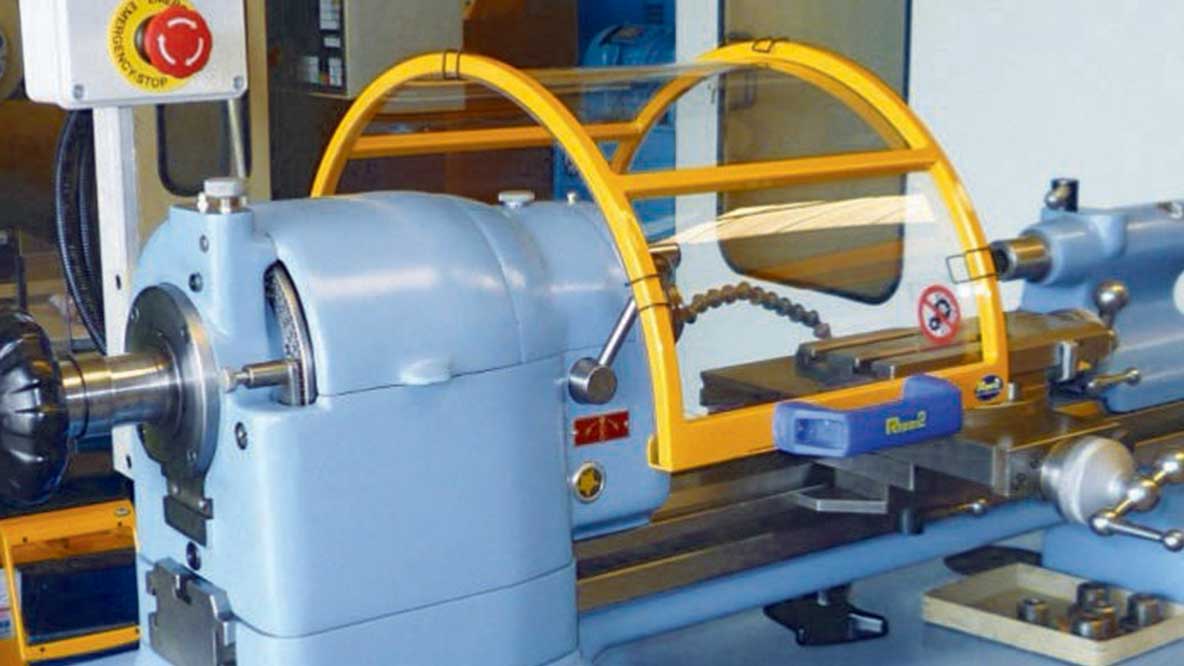

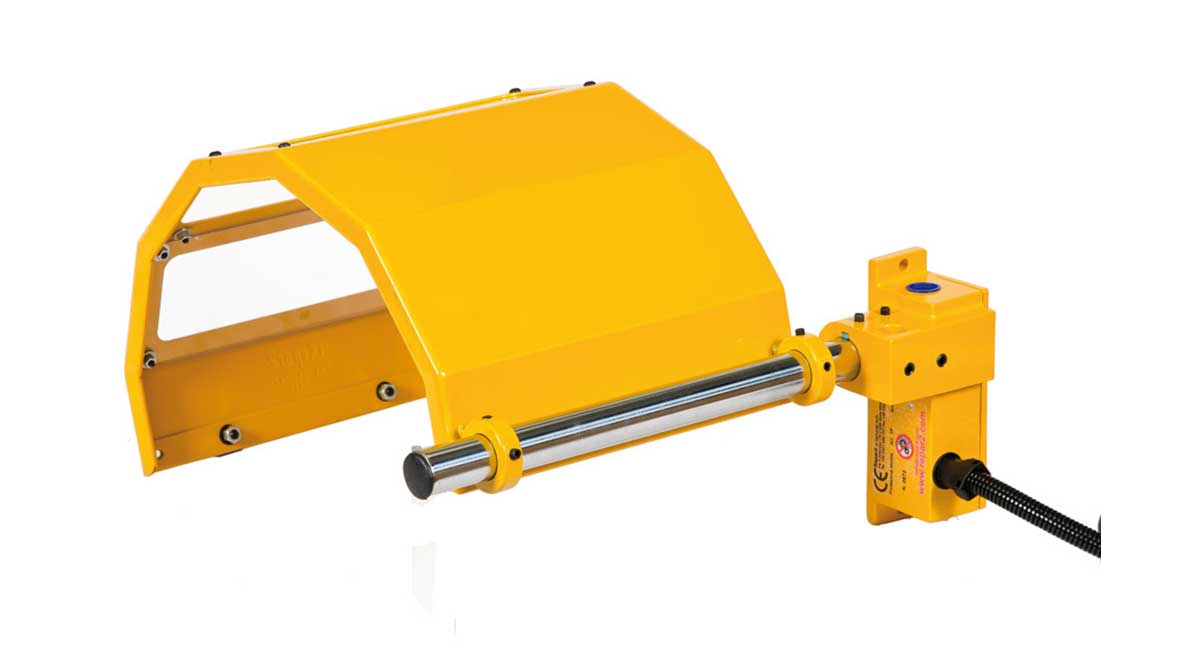

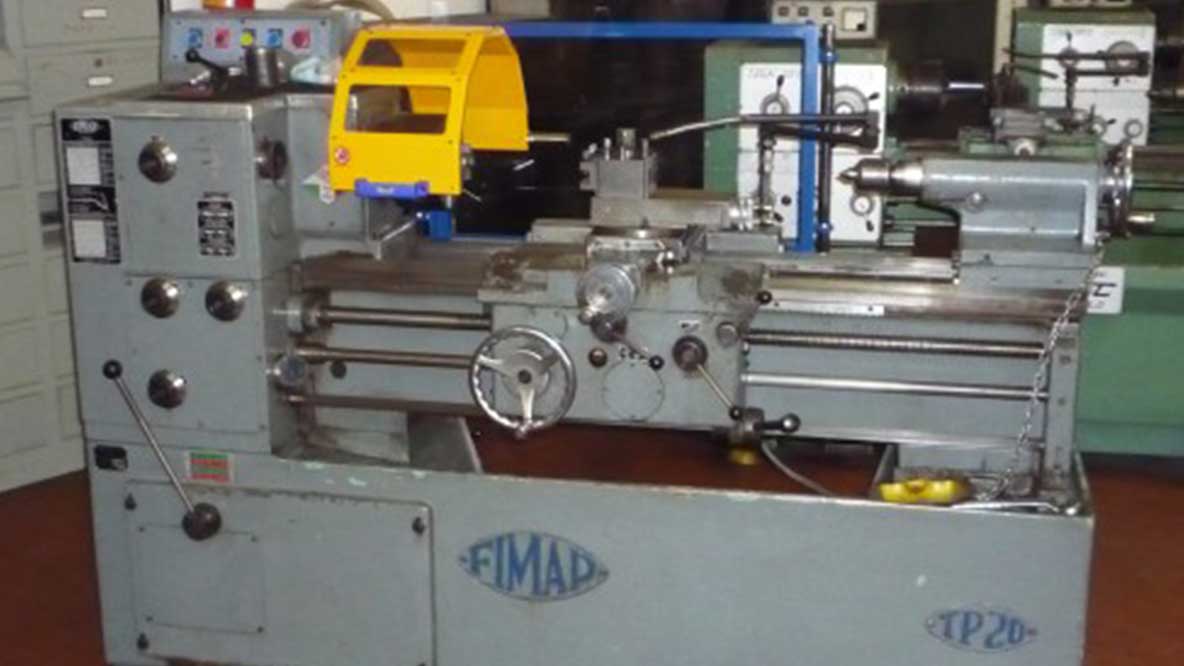

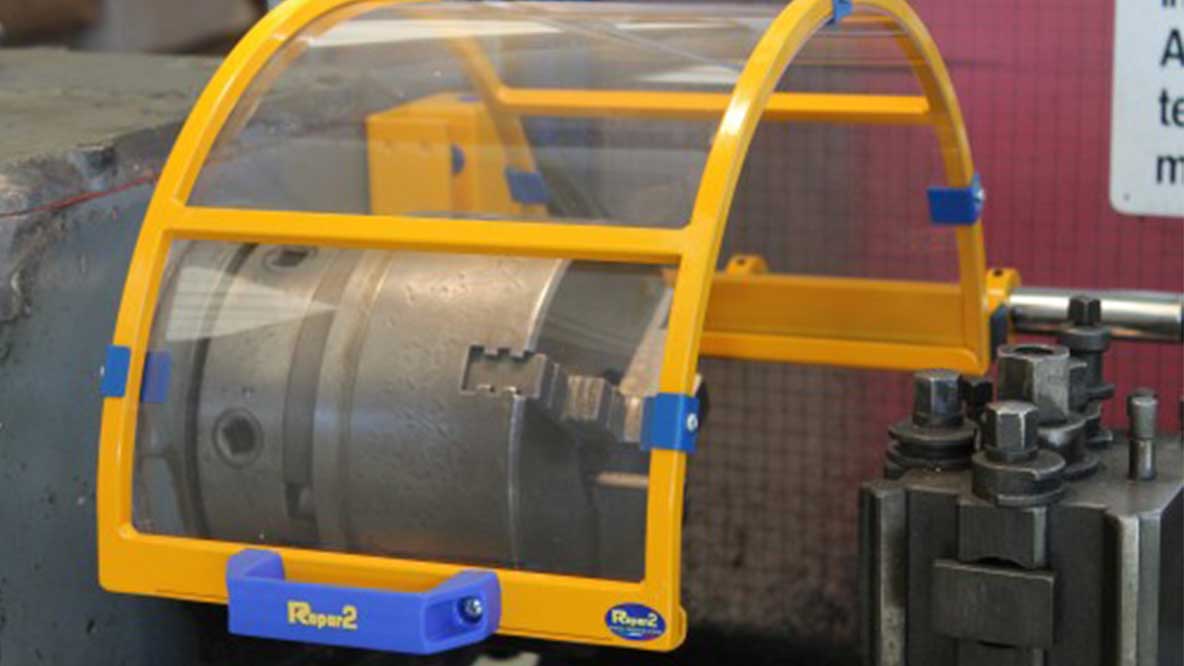

CHUCK GUARD – ‘TF’ MODEL

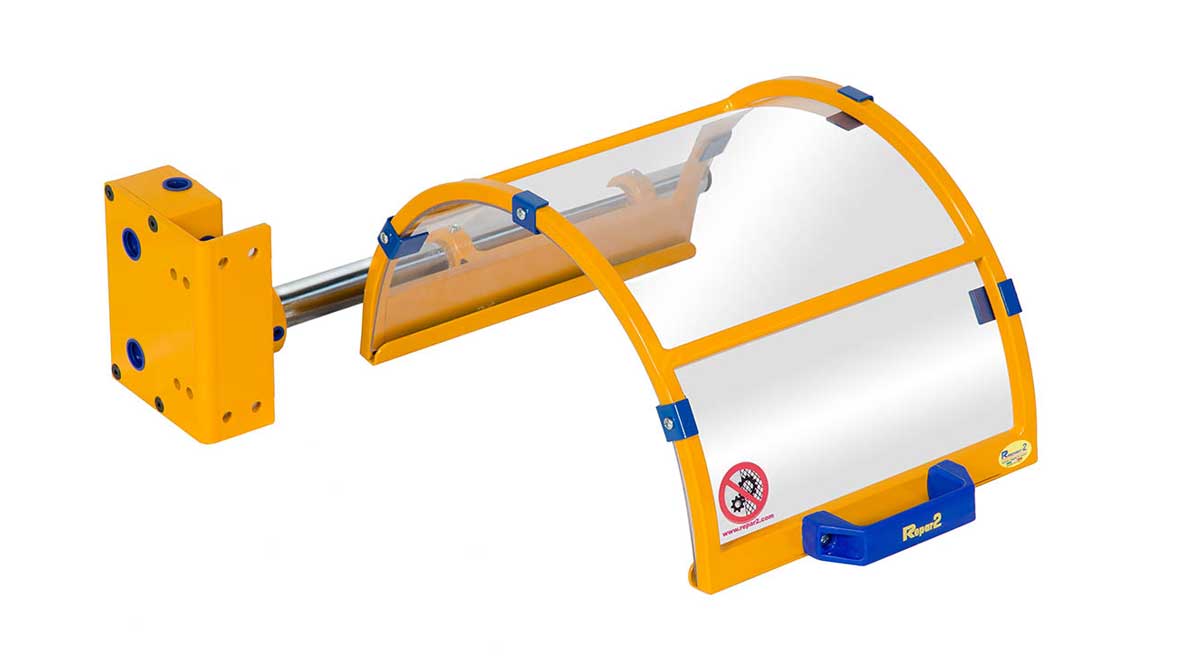

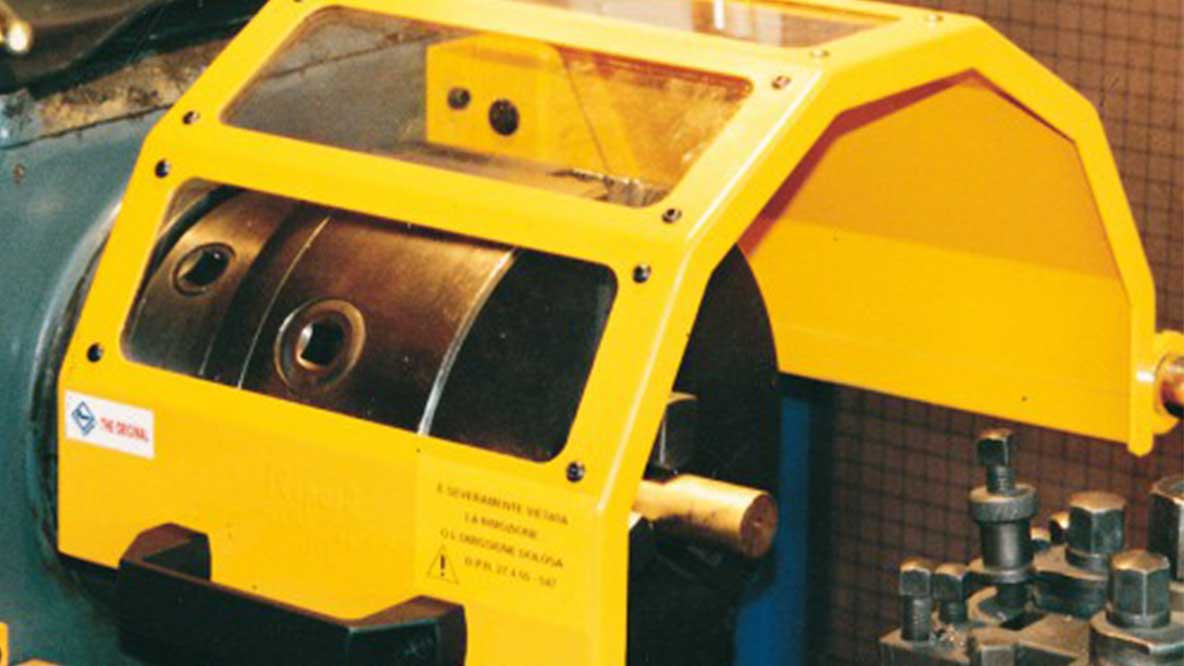

Polycarbonate safety guard for lathe chuck, polycarbonate screen, steel frame and safety microswitch.
All support units are provided with an adjustable clutch.

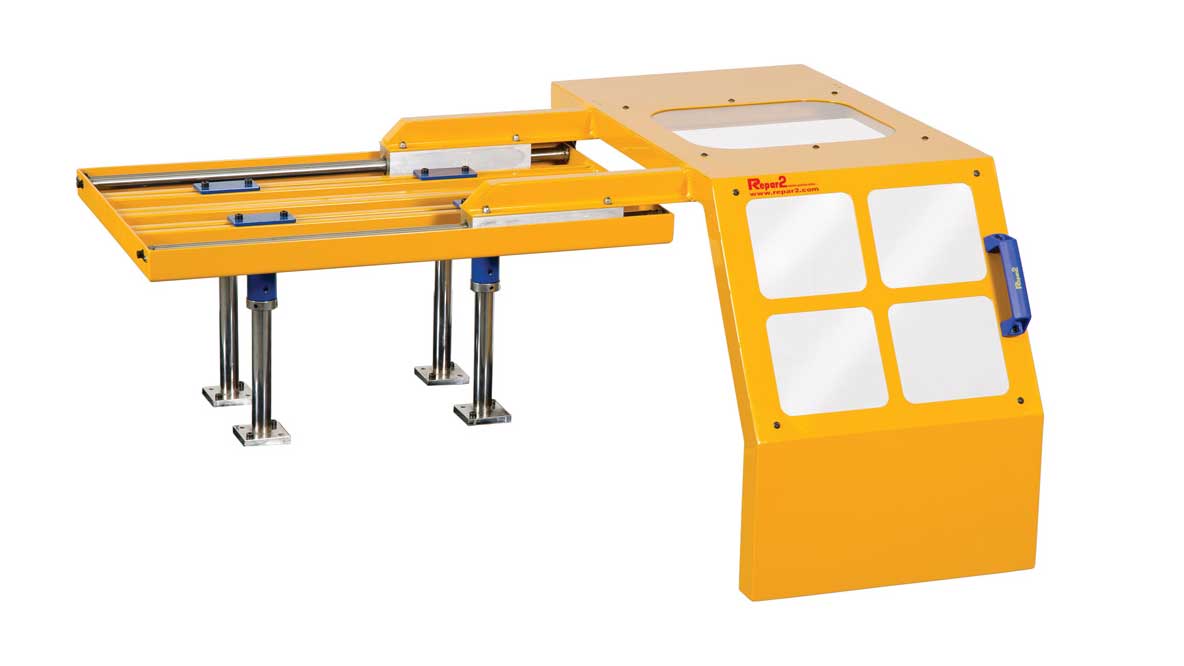

CHUCK GUARD – ‘MAJOR’ MODEL

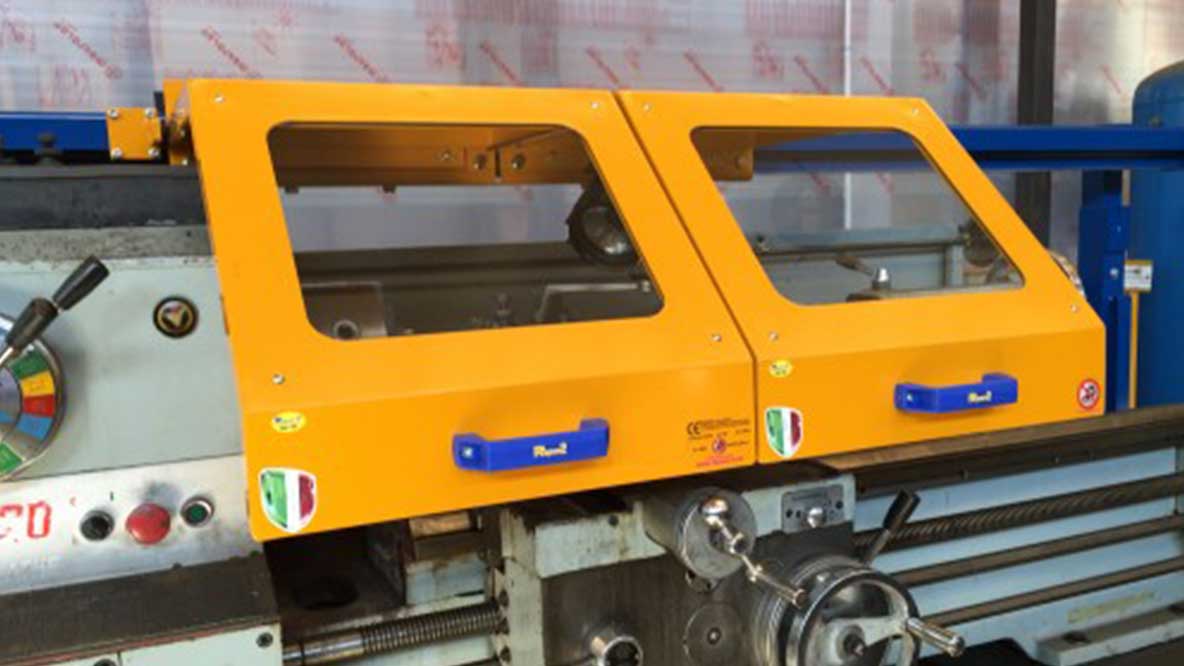

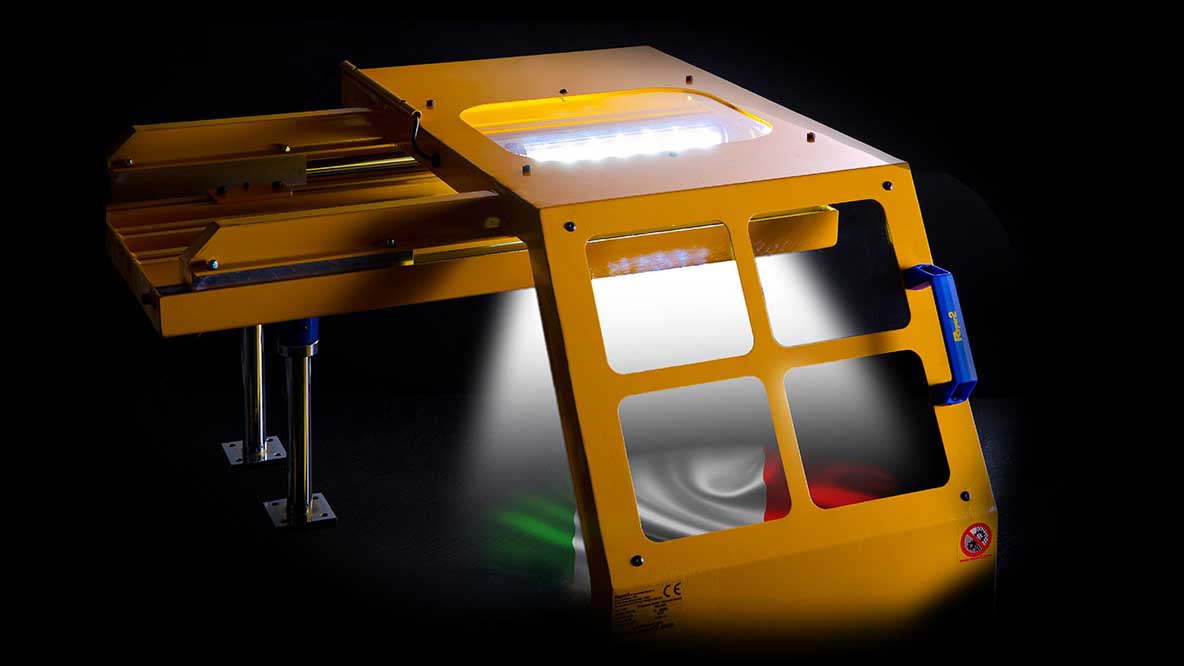

Safety enclosure sliding on ball guides for application on headstock of lathe. Made of steel sheets with polycarbonate screens. Complete with microswitch and fitting supports. Suitable for any kind of lathe due to the possibility of double positioning.
Measurements: guard diameter 700-800 – 1,000 – 1,200 – 1,500, width 400mm. Special sizes available on request. Weight: approx. 28 Kg.

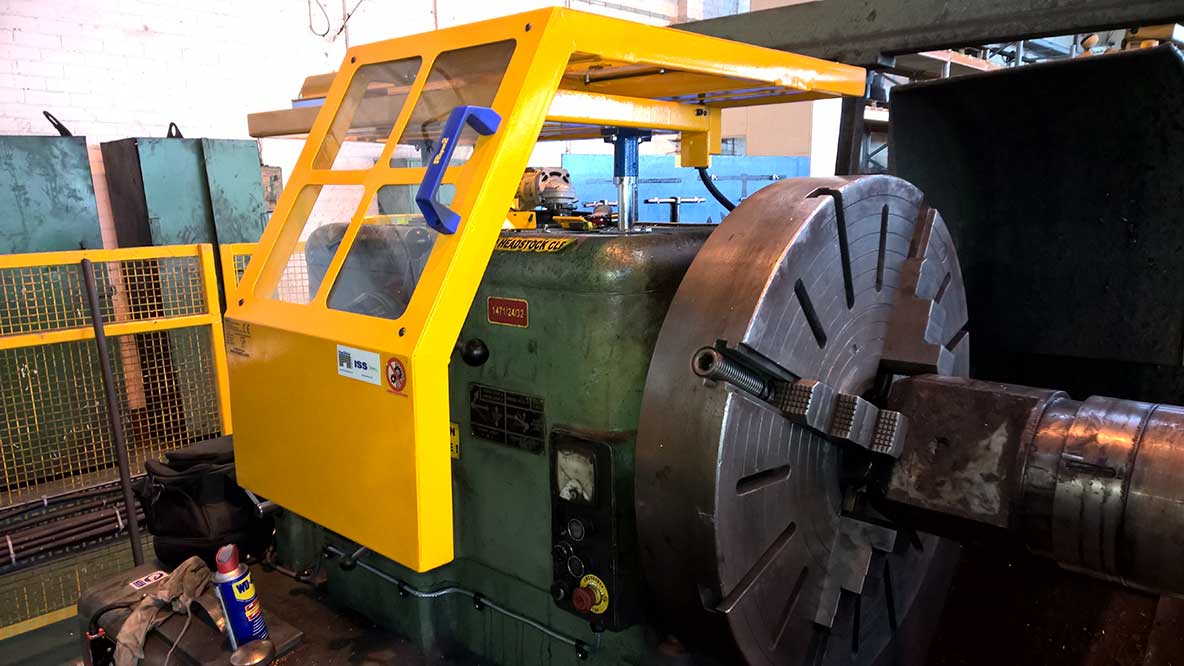

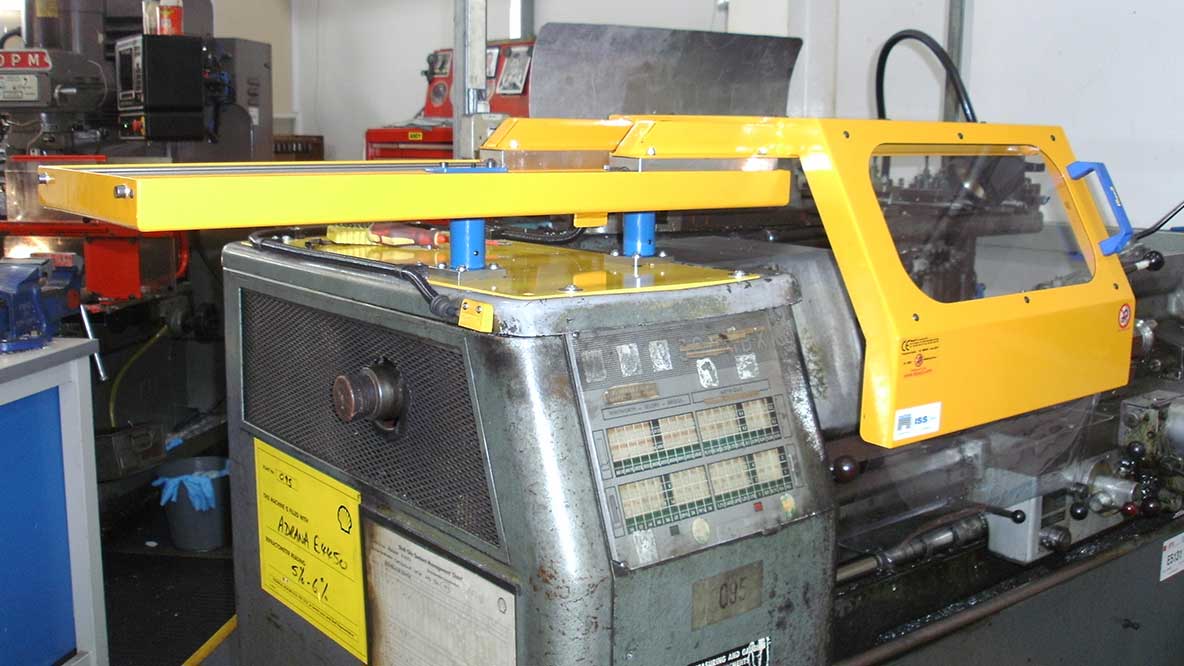

CHUCK GUARD – ‘MINOR’ MODEL

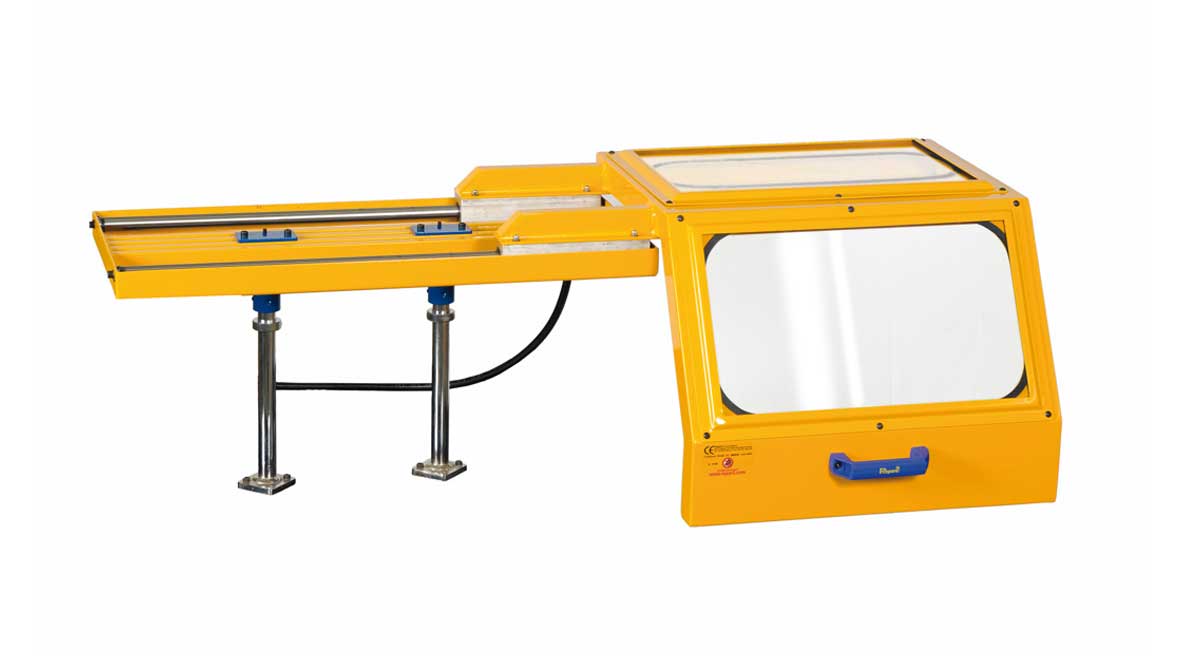

Safety enclosure sliding on ball guides to be fitted on the lathe’s headstock. Made of steel sheet. The upper and front sides have large windows with polycarbonate screens to facilitate visibility into the work area. Complete with microswitch system and fitting supports.
Weight: approx. 16 Kg.

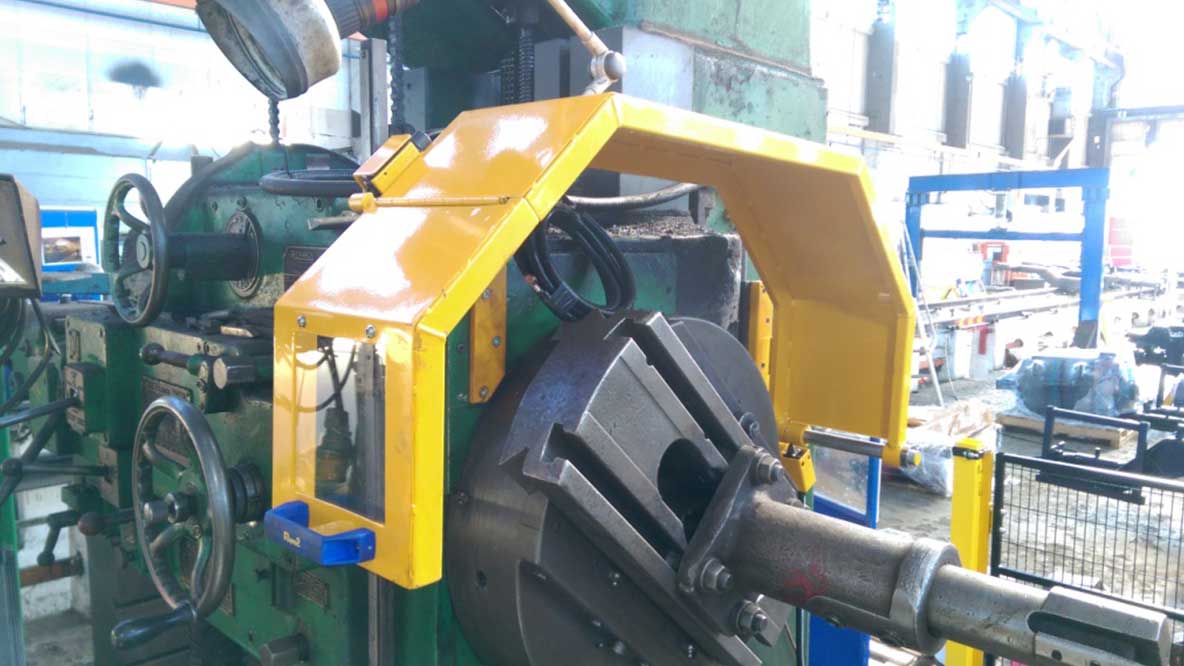

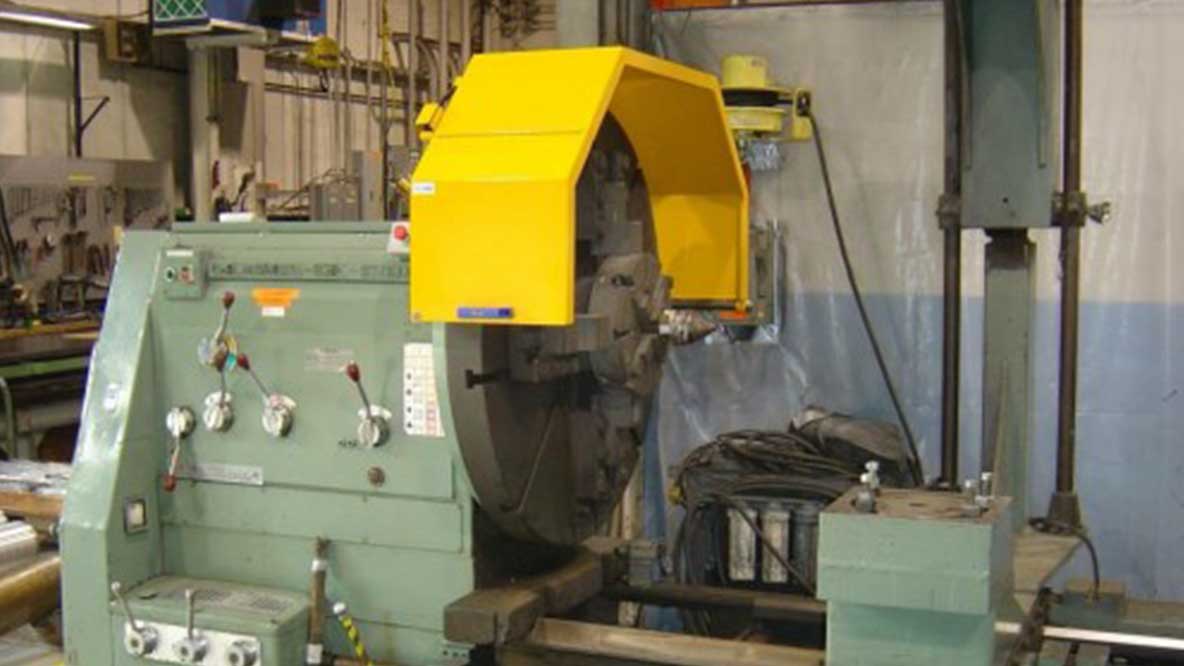

CHUCK GUARD – ‘TP’ MODEL

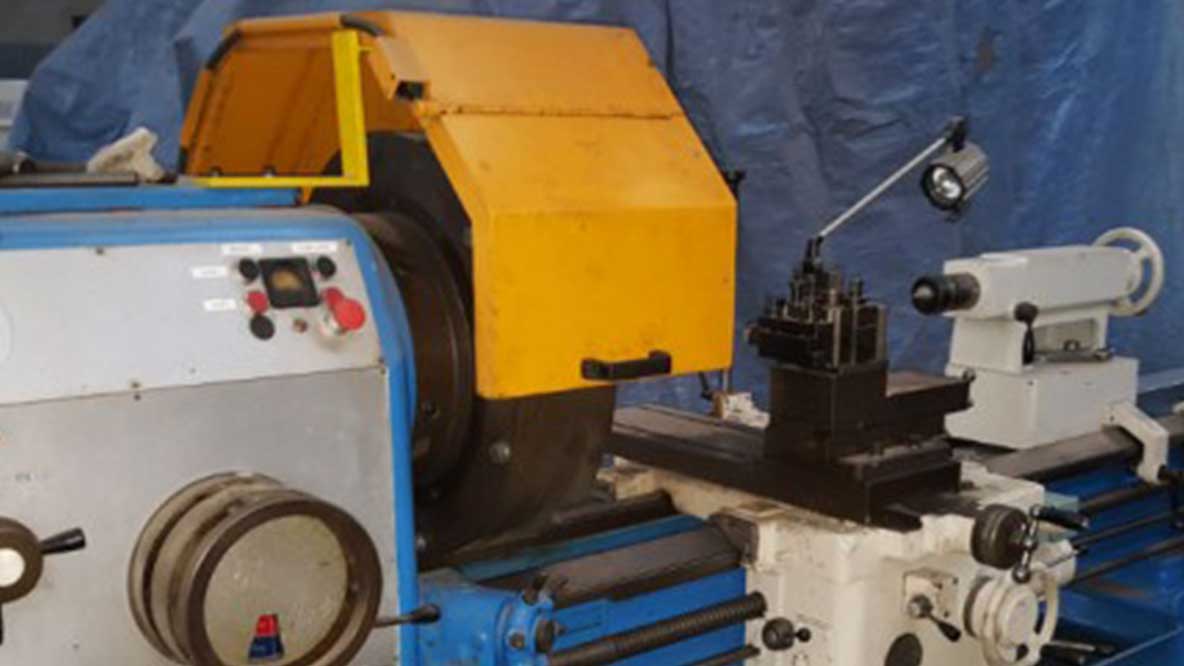

Safety guards for lathes with medium-sized chucks or tables. Steel frame with double hinges for tilting, complete with microswitch.
Weight: approx. 20 Kg.

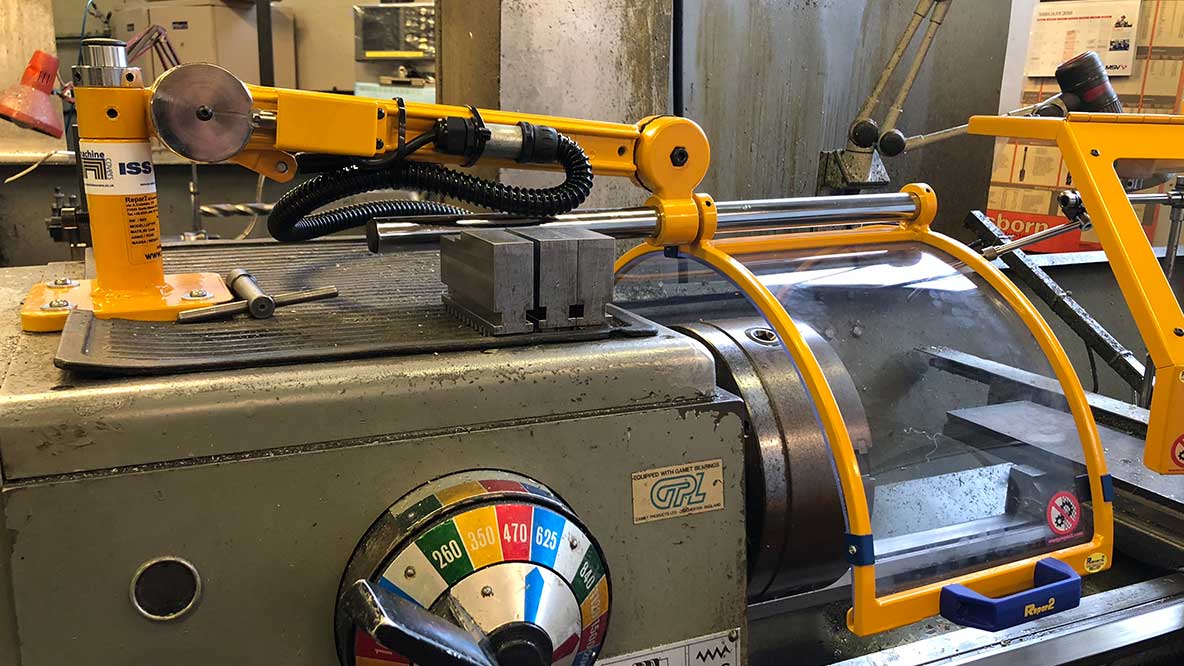

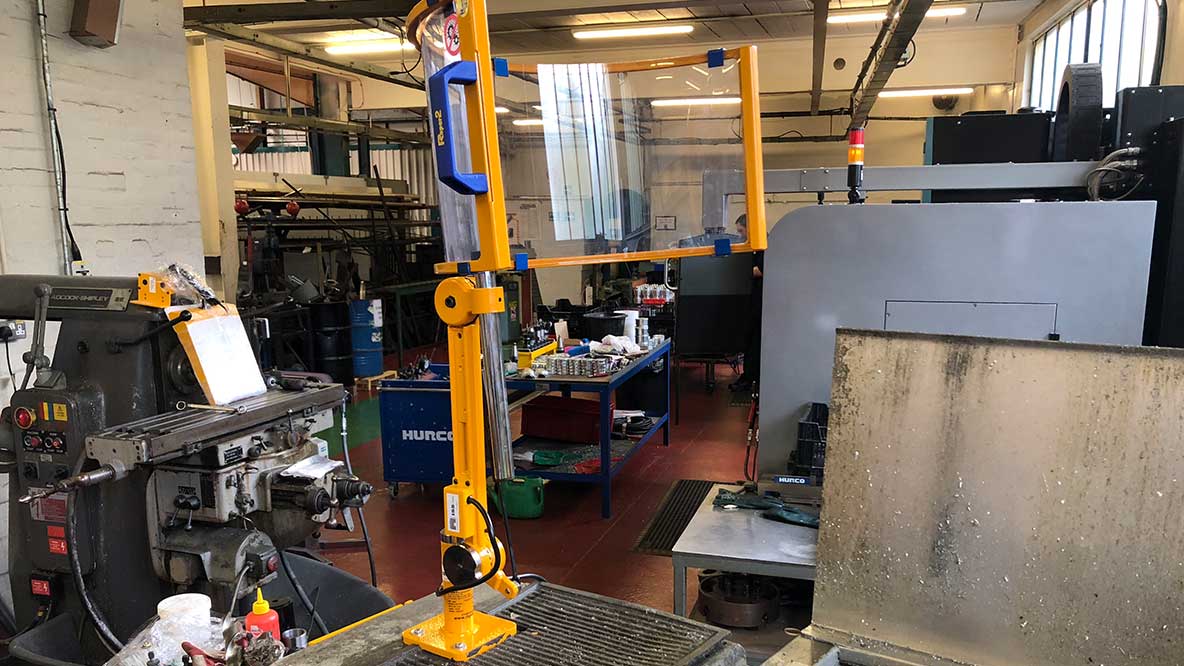

CHUCK GUARD – ‘PT’ MODEL

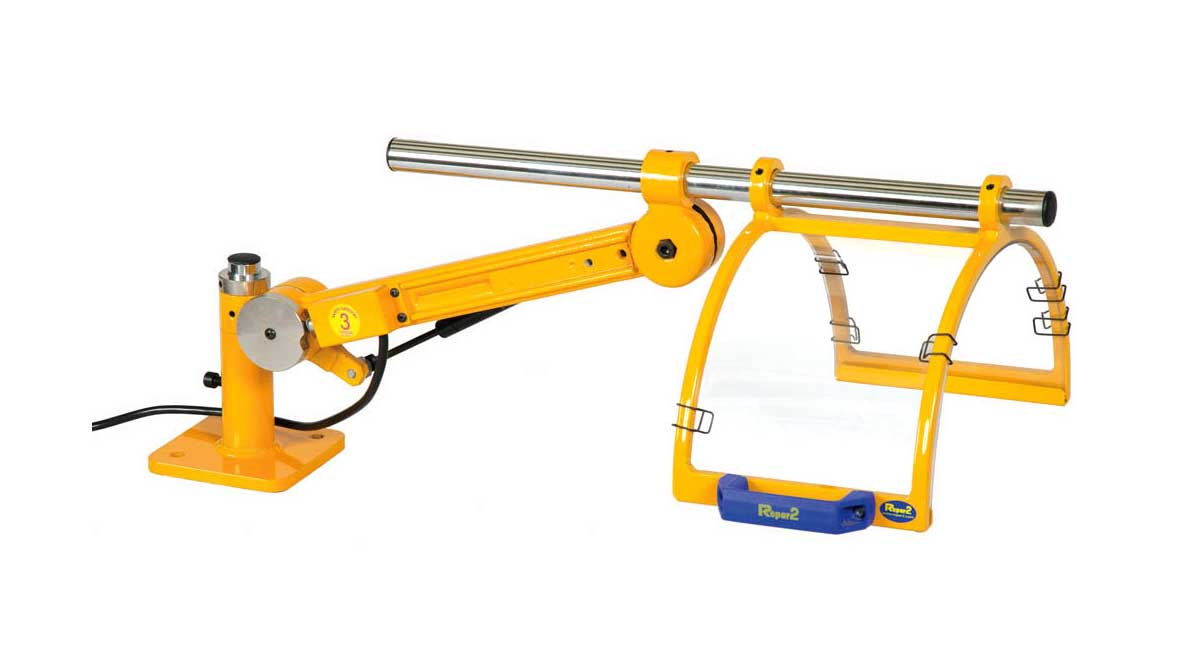

Safety guard for lathe with vertical arm lifting, adjustable in height and length, with gas spring and safety microswitch.

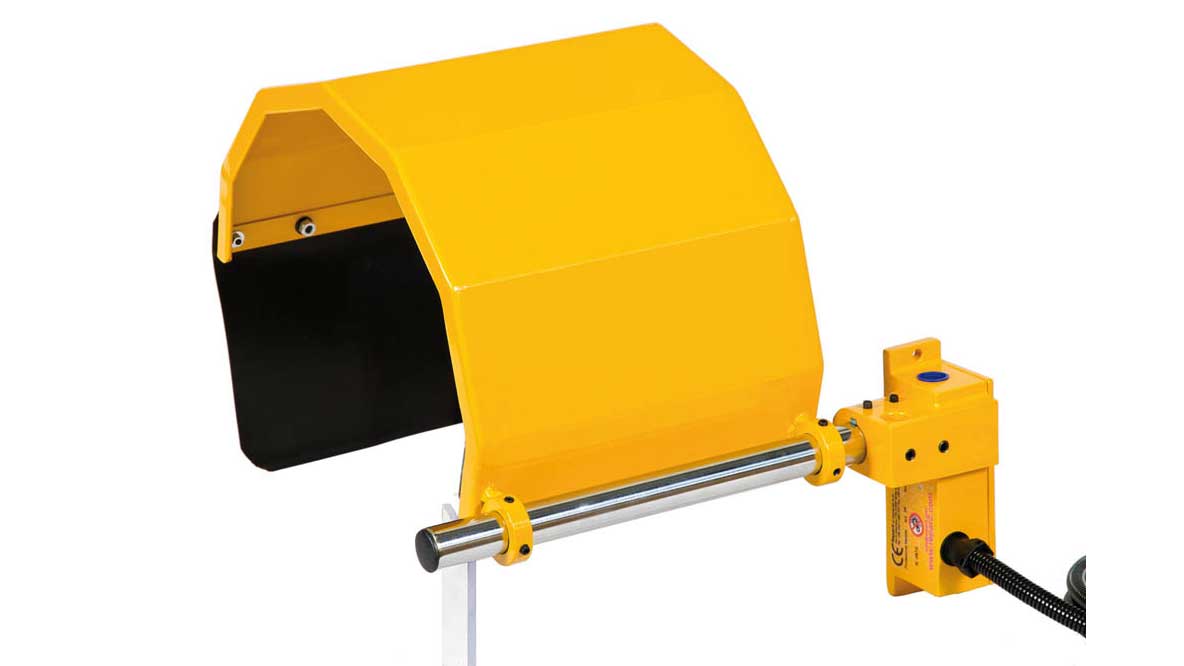

CHUCK GUARD – ‘TFM’ MODEL

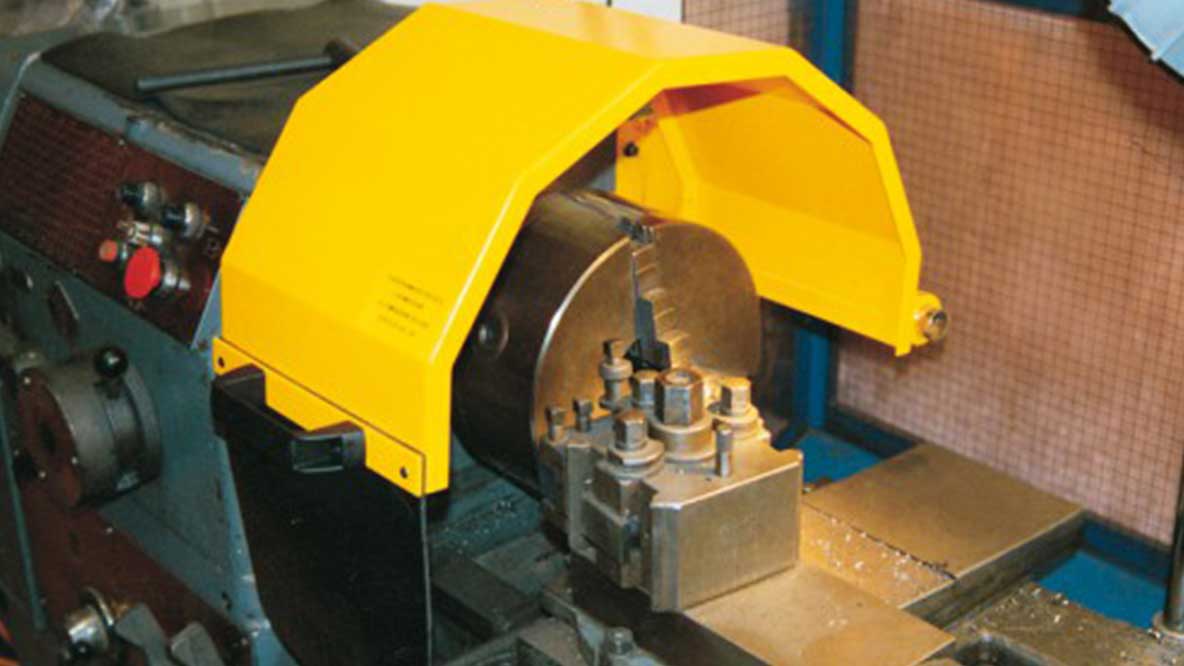

Same concept as model TF but with full metal screen. Equipped with safety microswitch. All support units are provided with an adjustable clutch.

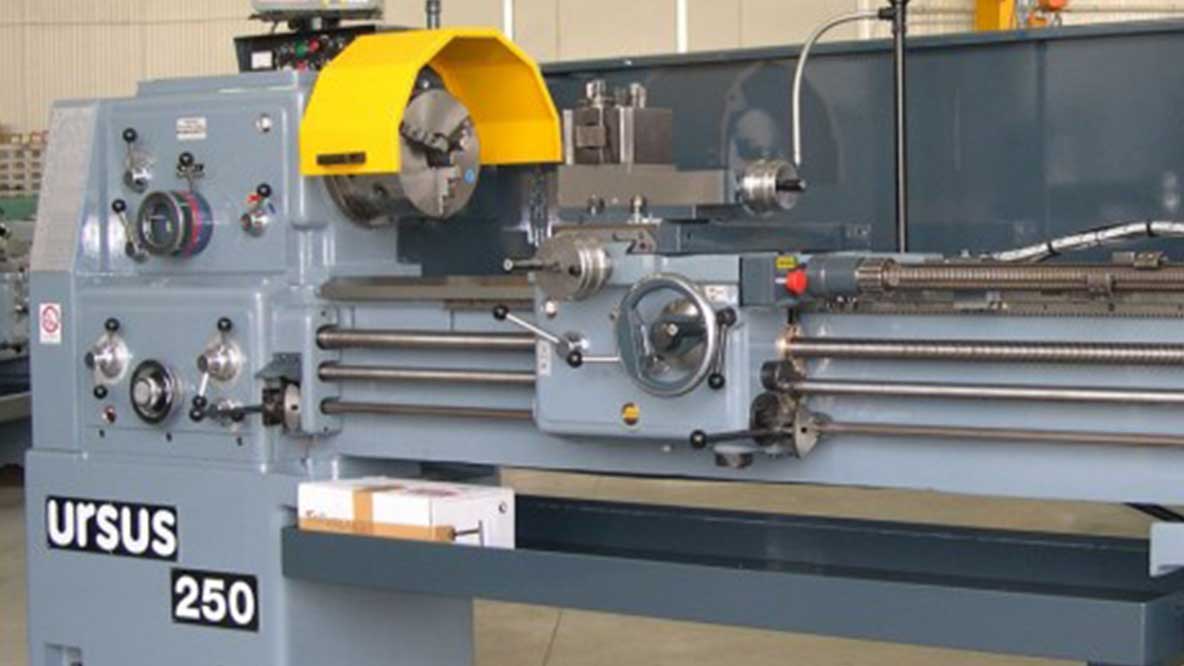

CHUCK GUARD – ‘TFPOL’ MODEL
Safety guard for lathe chuck, made of robust steel metal sheet structure.
Large polycarbonate windows, with safety microswitch.
All support units have an adjustable clutch.

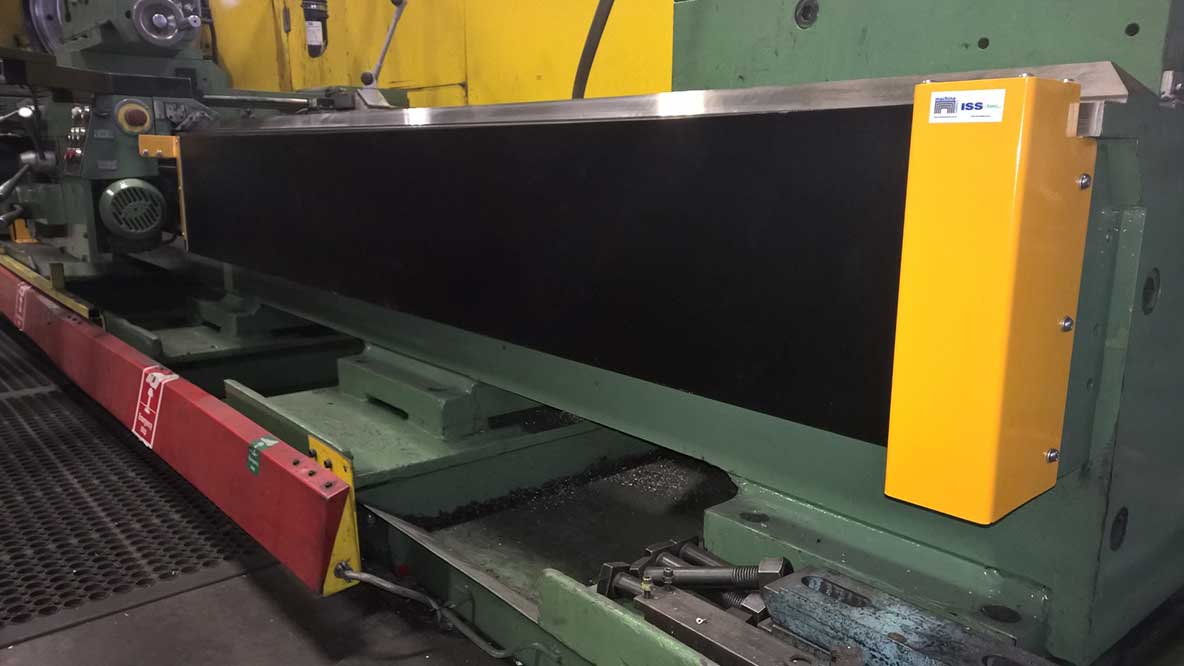

LEAD SCREW COVERS – ‘AR’ MODEL

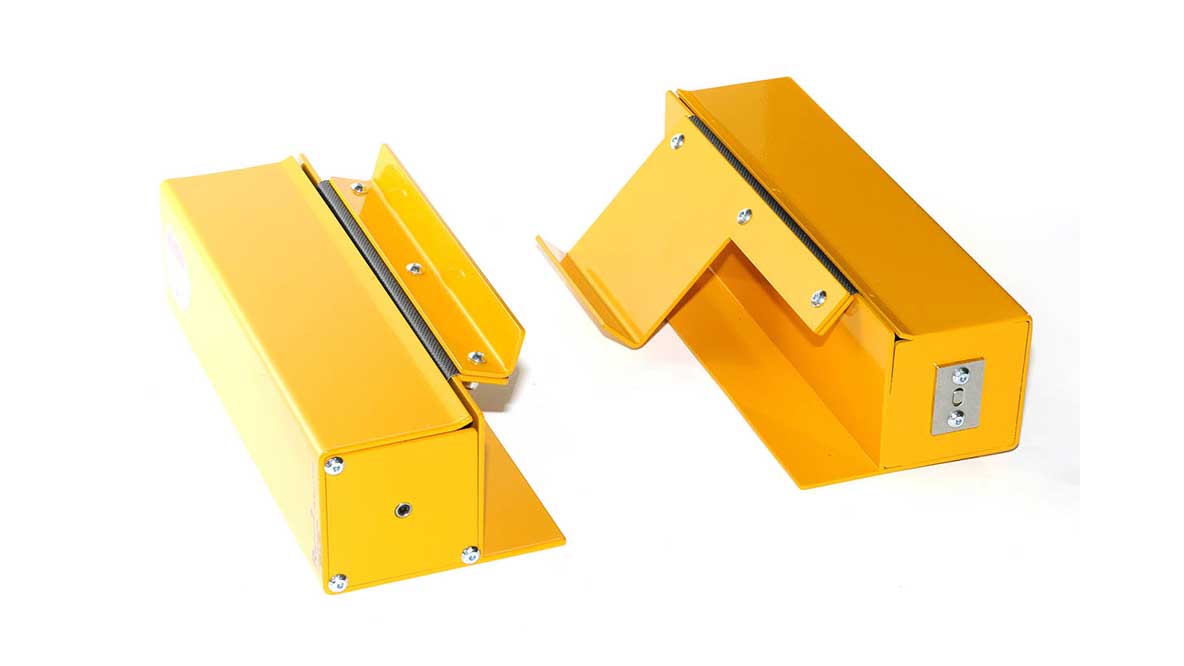

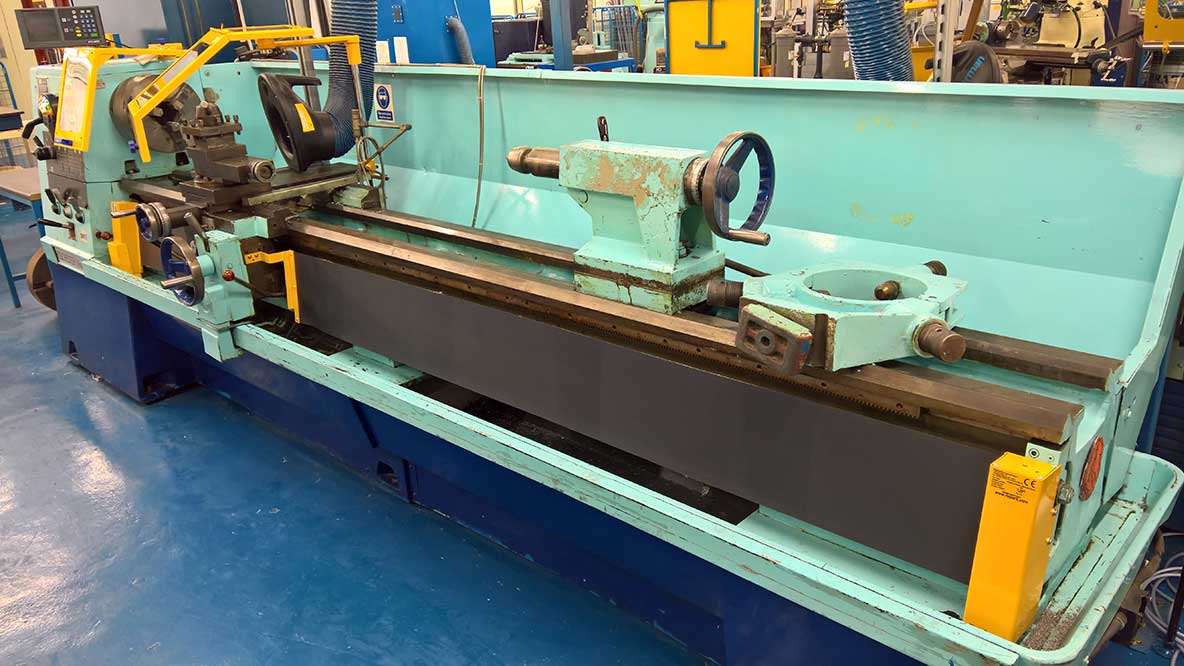

Pair of safeguards of roller-blind type for lathes to shield the leadscrew/stock bars. Aramide fabric with polyurethane coating 0.4mm thick. Heat resistant, acid and oil resistant.
run: 1,000 x 200 – 1,500 x 200 – 2,000 x 200 – 3,000 x 250
box: 1,000 – 1,500 – 2000 75 x 75 H.275mm, 3,000 80 x 80 H.300mm

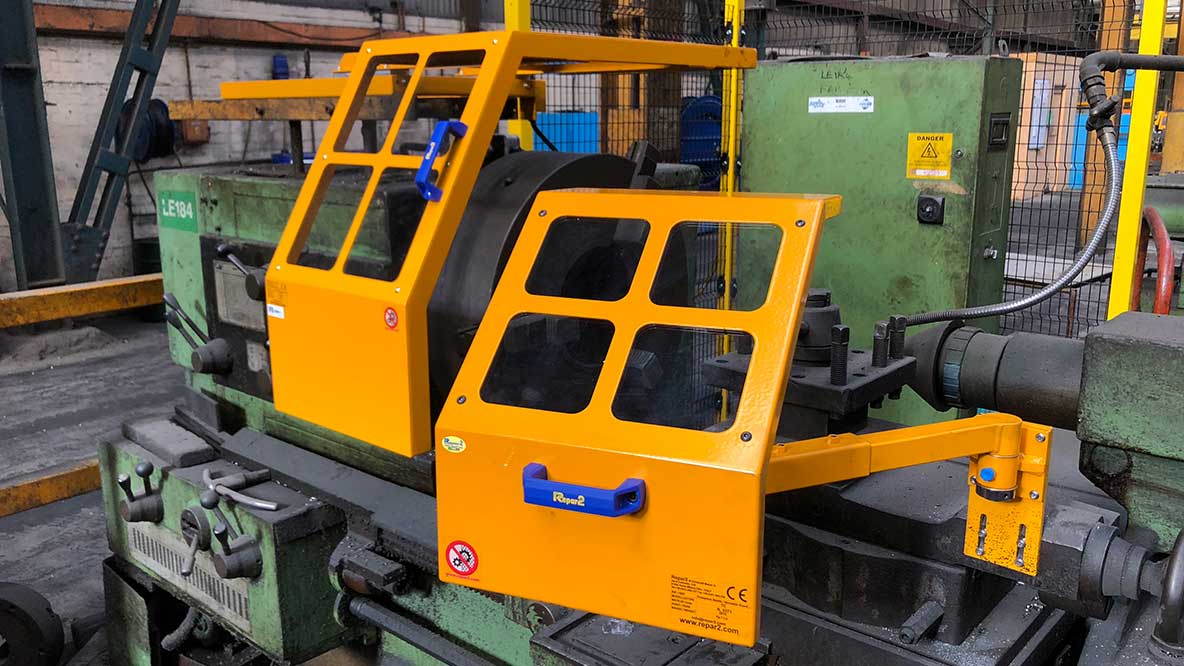

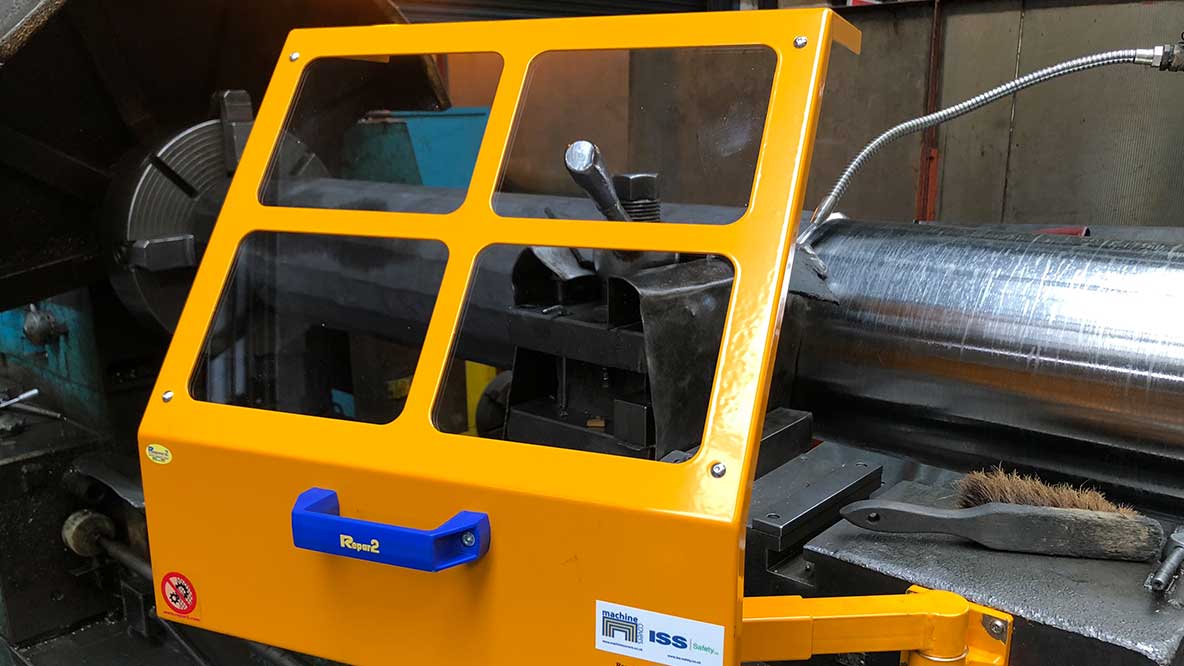

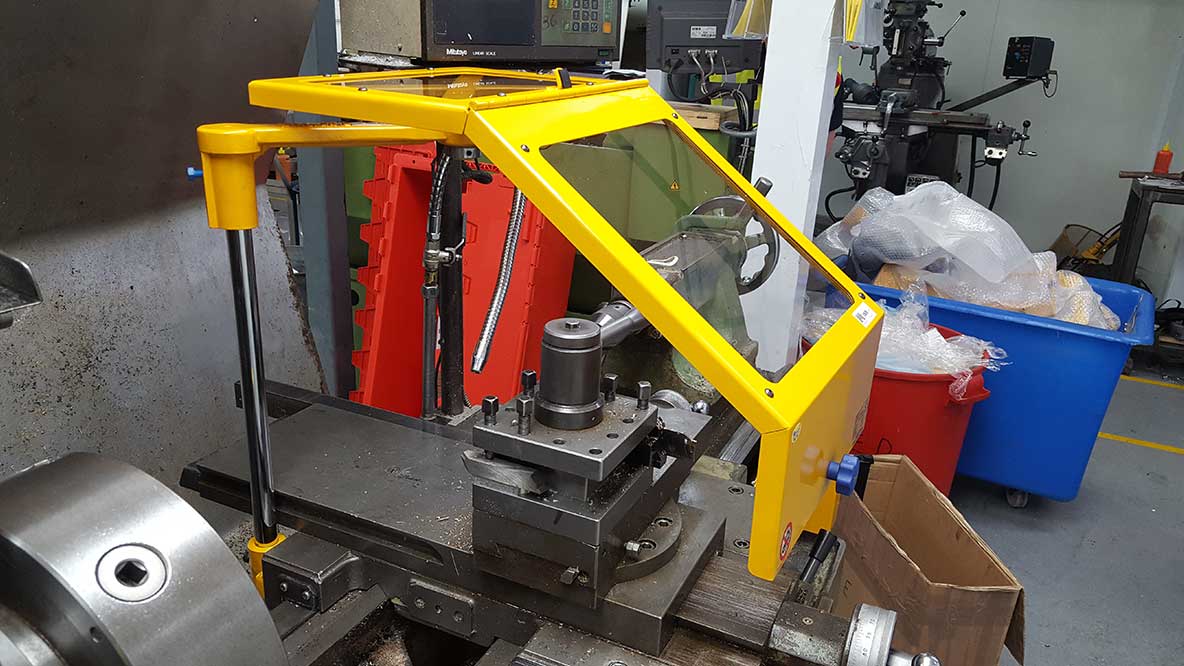

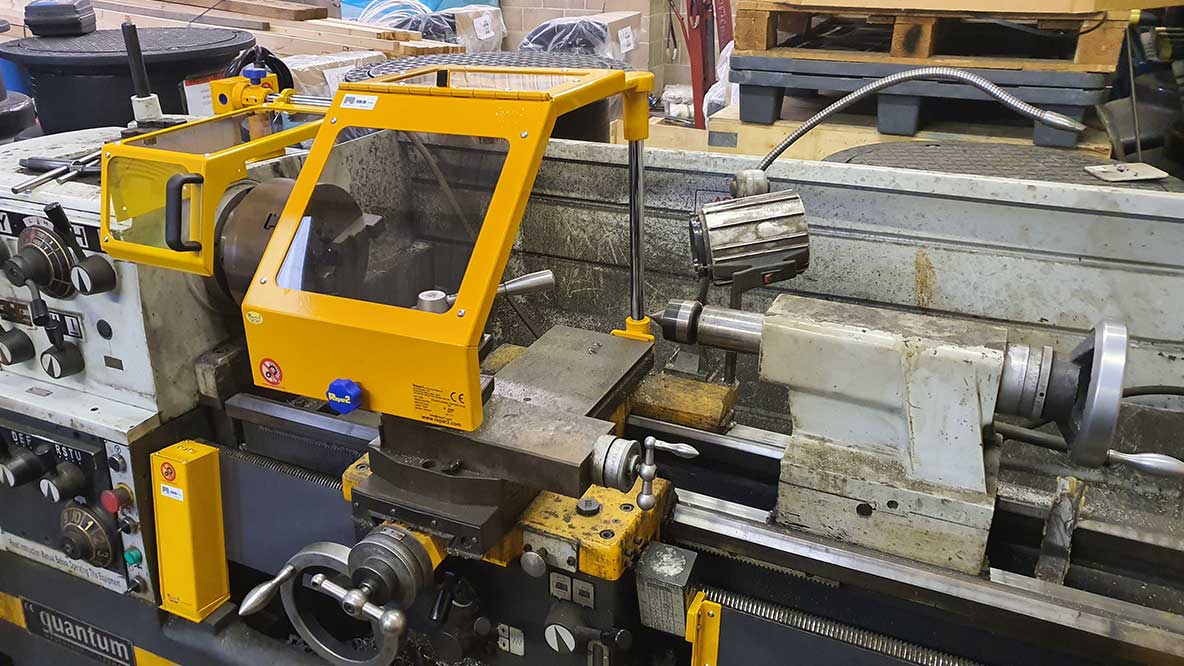

SADDLE GUARD – ‘TC – REAR FITTING’ MODEL

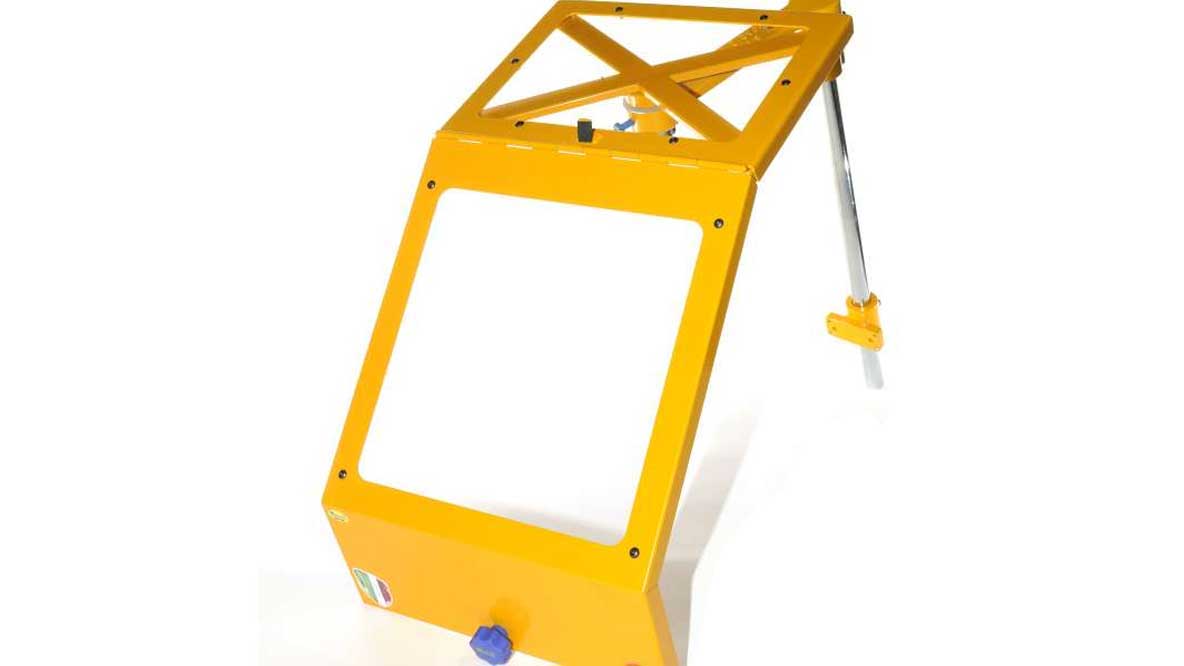

Mobile and swivelling safety guard to be fitted on the longitudinal carriage of the lathe. To be fitted on the rear of the carriage. Ideal when turning long components.
Steel frame with polycarbonate screen. Protects the operator against chips and coolant. Available either with or without cooling system and microswitch system. To be fitted on the rear side.
Weight: approx. 5 – 7.5 – 9 Kg

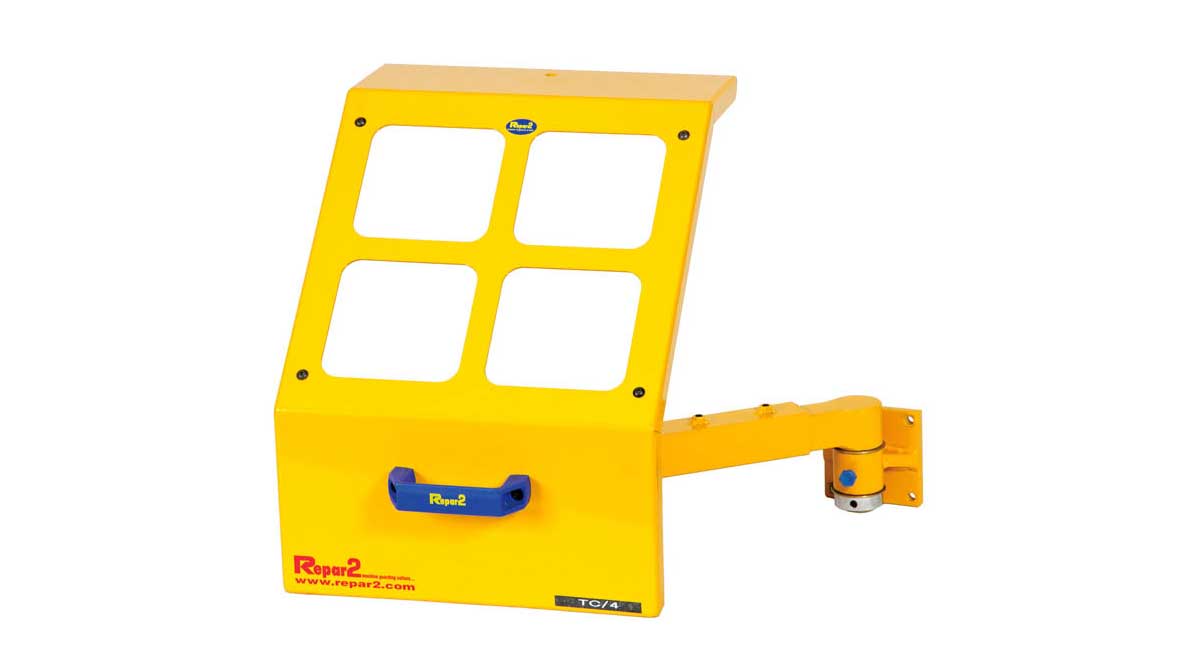

SADDLE GUARD – ‘TC – FRONT FITTING’ MODEL
Mobile and swivelling safety guard to be fitted on the longitudinal carriage of the lathe. Steel frame with polycarbonate screen. Protects the operator against chips and coolant. To be fitted on the front of the carriage. Ideal when turning long components.
Weight: approx. 5.5 – 7.5 – 9 Kg.

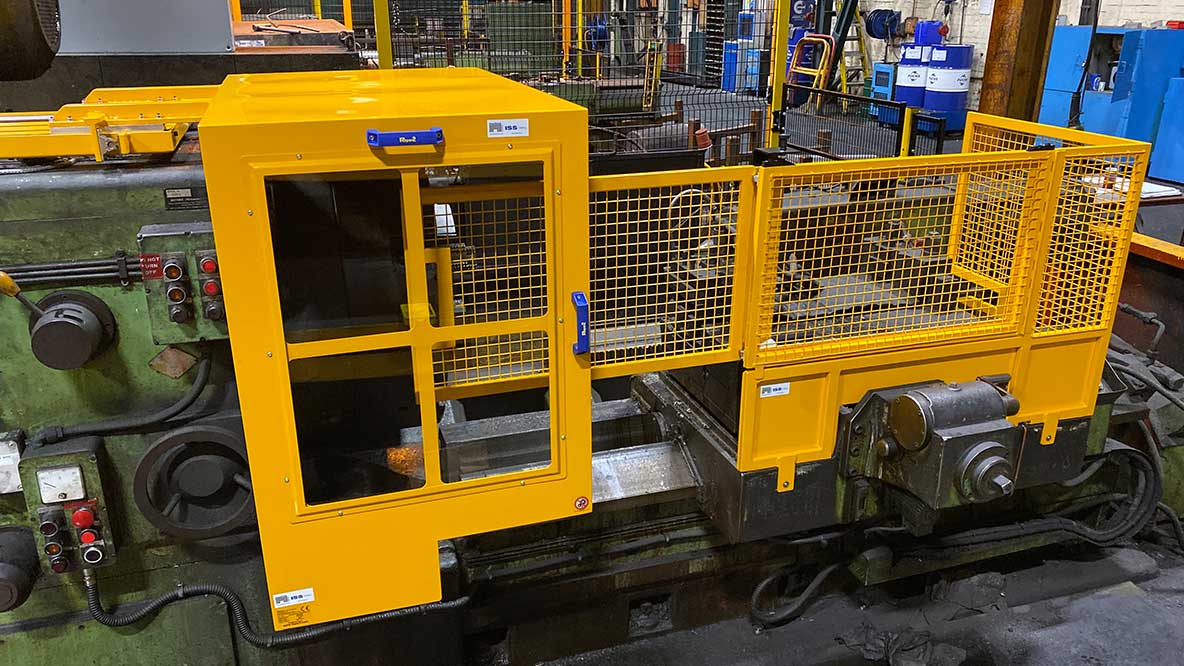

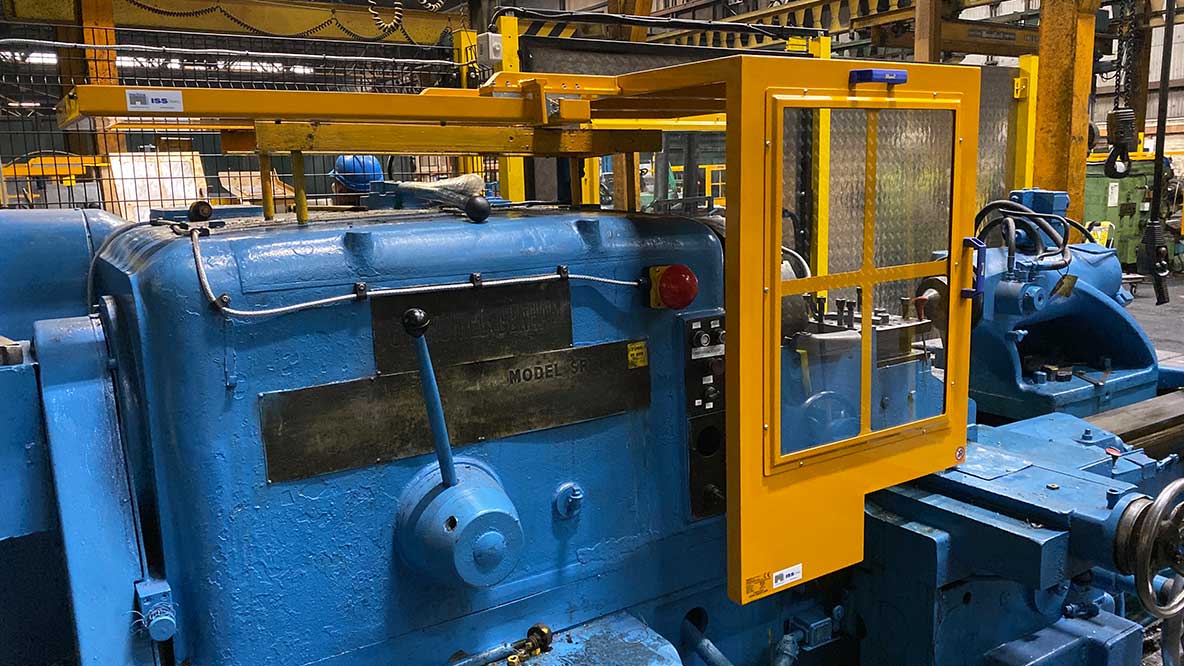

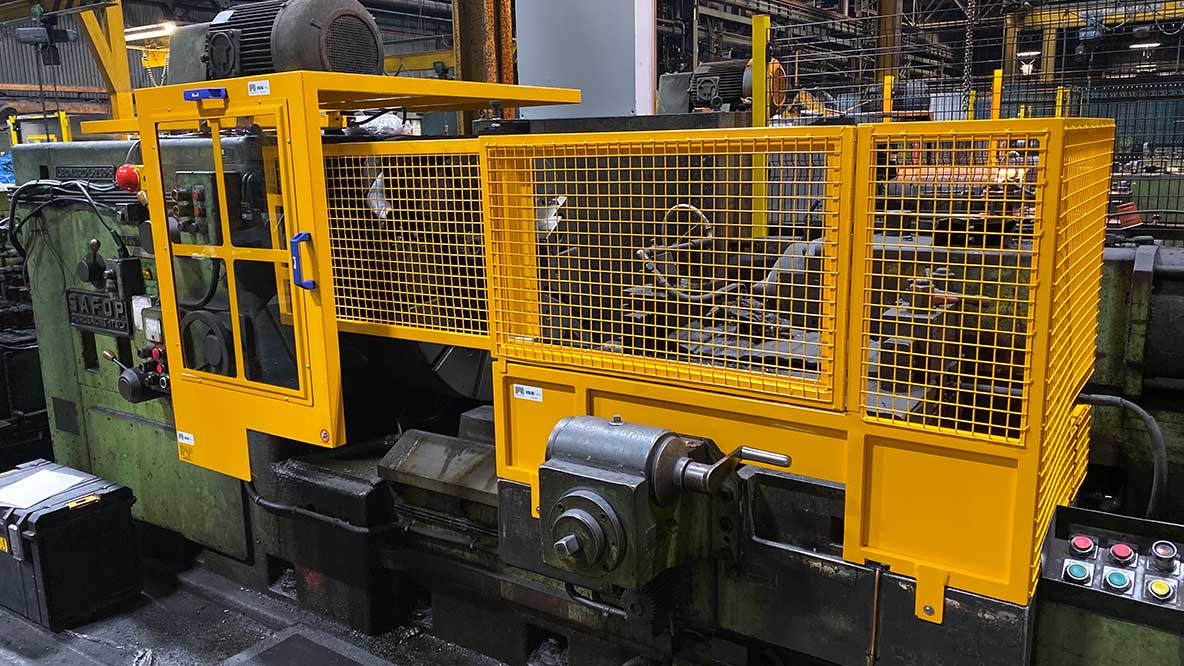

CHUCK GUARD – ‘AM’ MODEL
Protection screen for lathes sliding on ball guides. Made of steel sheets with safety microswitch. Sizes on request.
Weight: approx. 40 Kg.

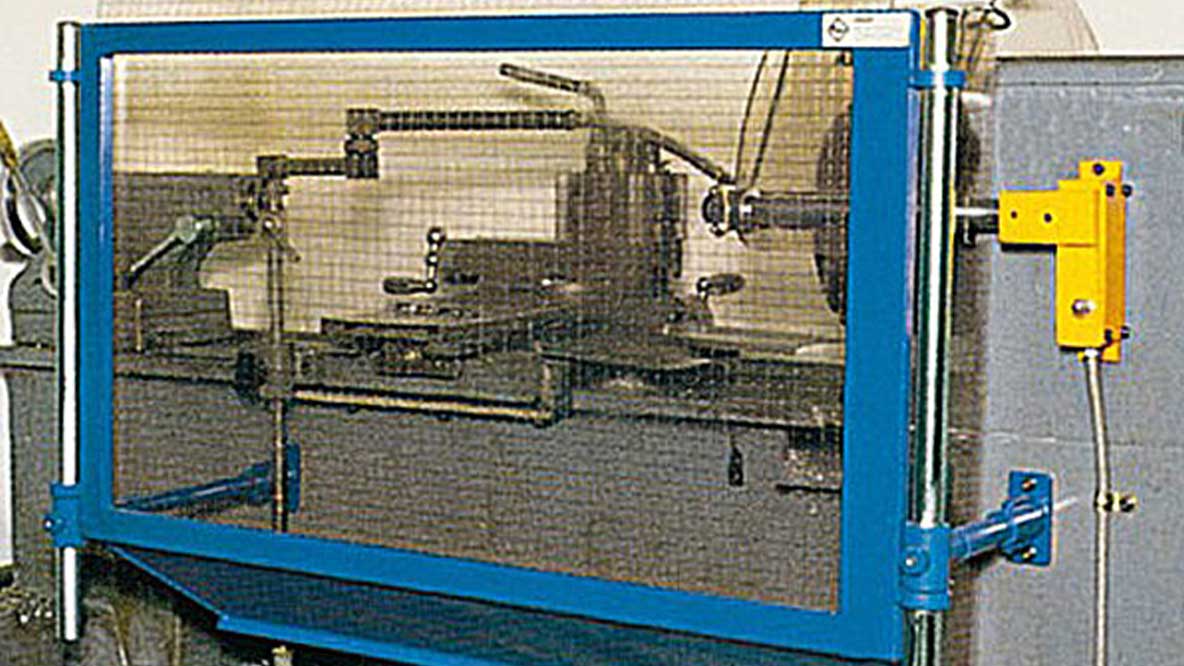

REAR GUARD – ‘POST’ MODEL

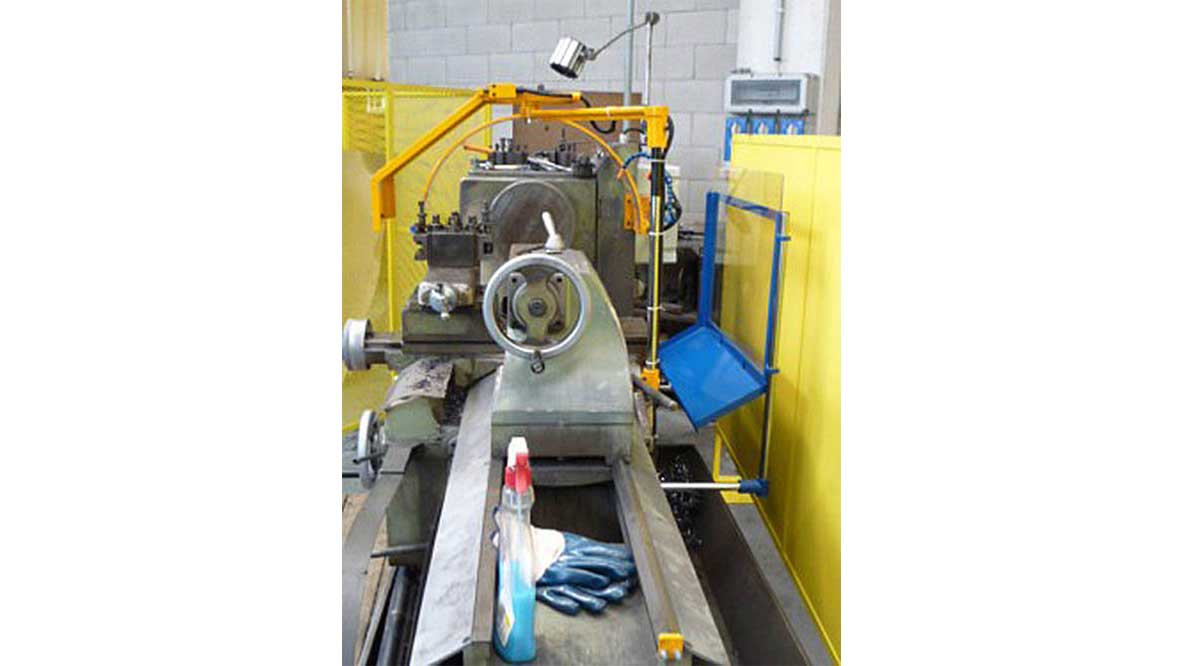

Fixed safety guard for lathes to be fitted at the rear of the machine. Steel frame with polycarbonate screen. Protects the operator against chips and coolant. Suitable for any kind of turning machine. Sizes on request.

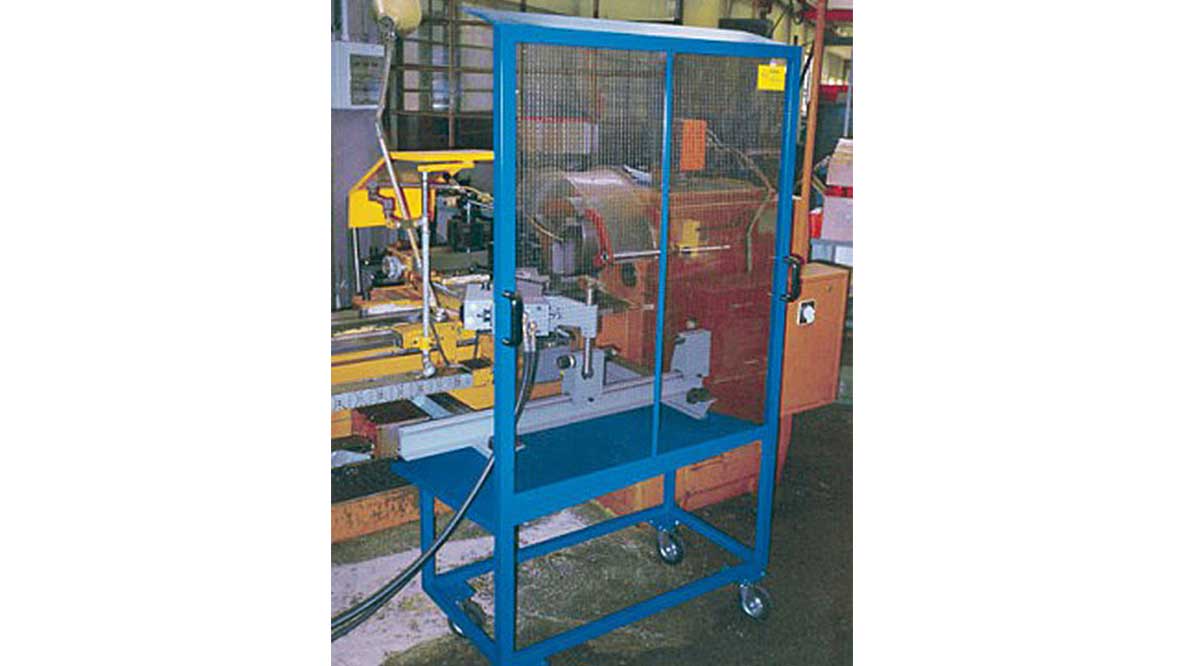

REAR GUARD – ‘AB’ MODEL
Rear safeguard for lathes, with steel frame and shockproof transparent grate to protect against chips and coolant. Adaptable for any kind of lathe. Supplied with wheels. Dimensions on request.
Weight: approx. 20 Kg.

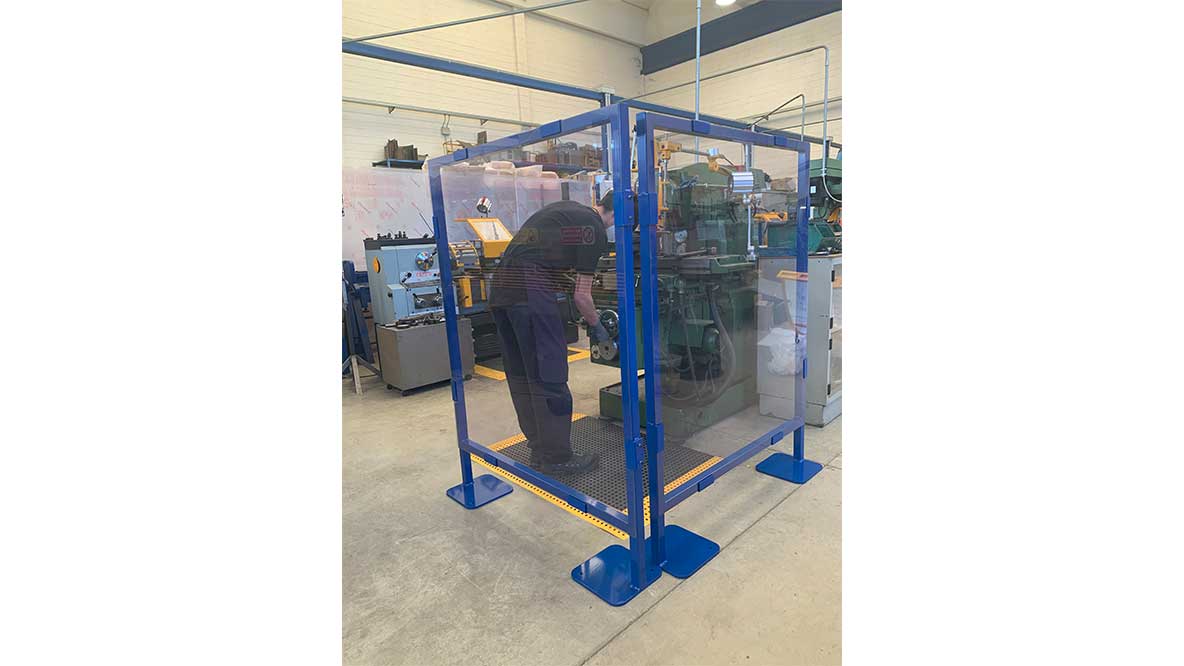

UNIVERSAL GUARD – ‘OM’ MODEL

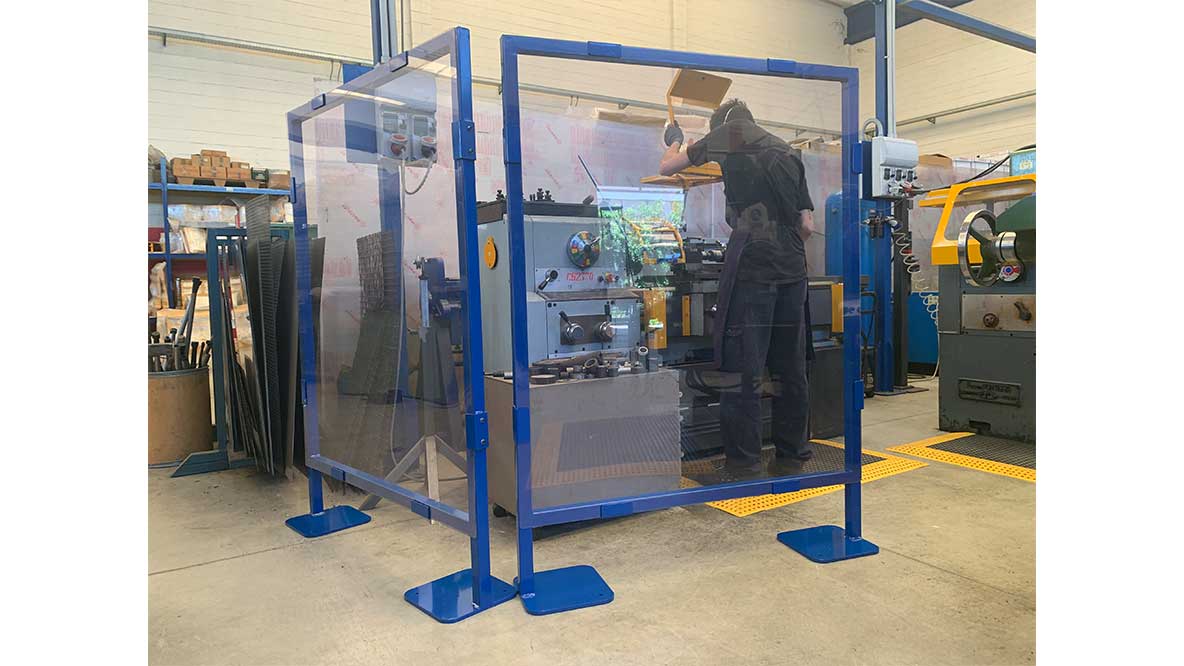

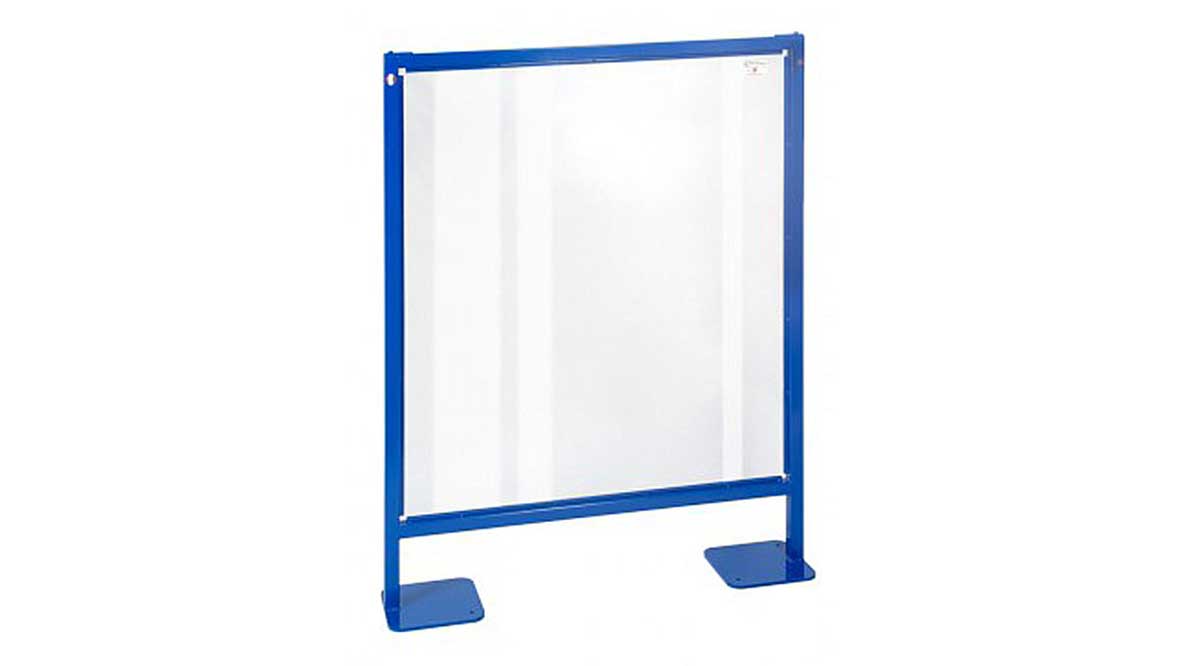

Transparent screen to ensure good protection against chips and splinters. Can easily be positioned near to any machine tool. Standard modules available. Different sizes can be made on request.
Weight: approx. 50 Kg.

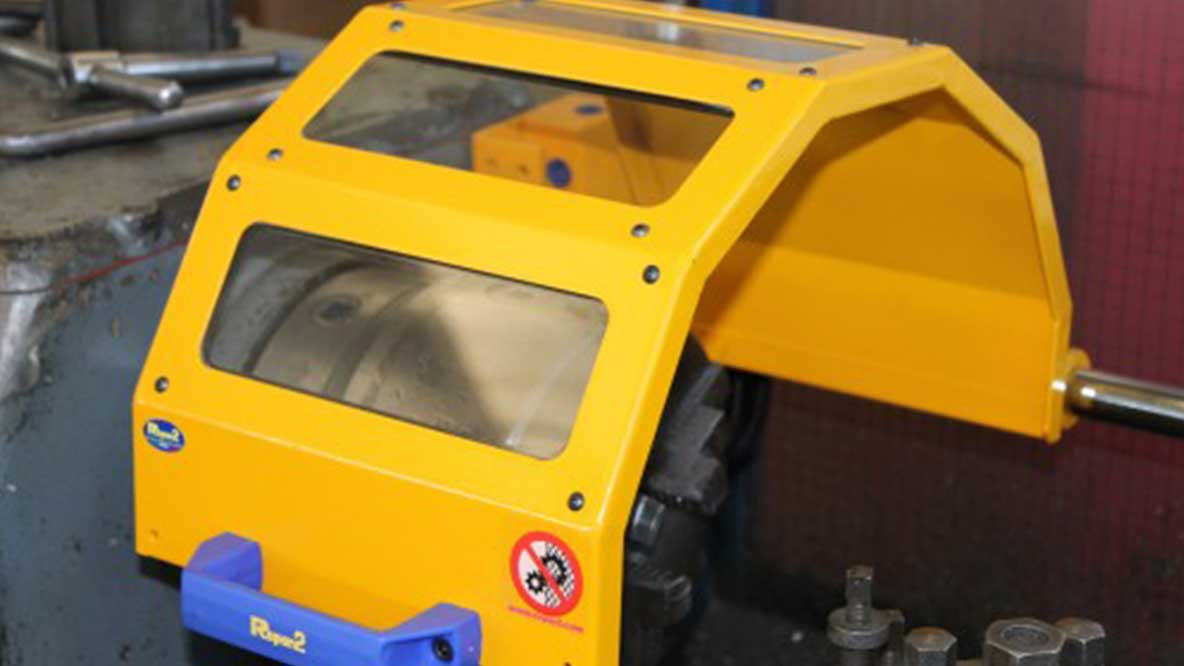

CHUCK GUARD – ‘TFVT’ MODEL
Safety guard for lathe chuck, with robust steel metal sheet structure.
Has large windows of 2+2mm laminated glass, with safety microswitch.
All support units are provided with an adjustable clutch.

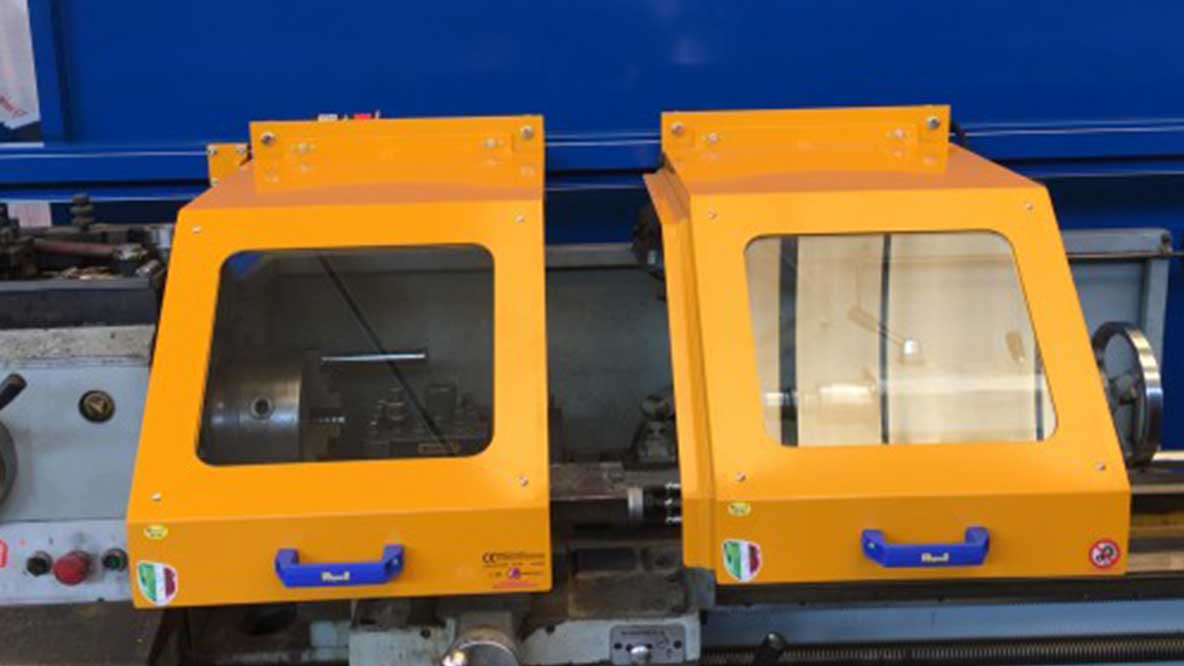

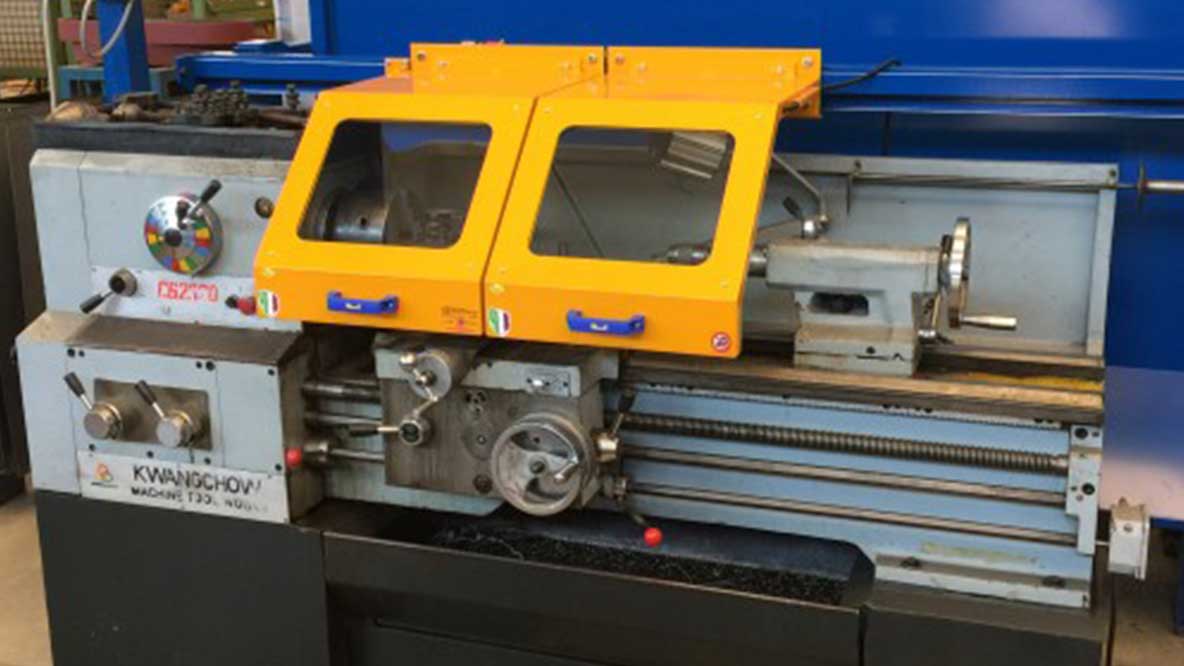

CHUCK GUARD – ‘SD’ MODEL
Sliding safeguard, made of tubes and polycarbonate. Mounted on rear protection, frame provided with microswitch on chuck guard. Sizes on request.
Weight: approx. 60 Kg.
