Presses
BS EN 692 / BS EN 693 / BS EN 12622
- fixed back and side guards
- photoelectric light guards
- emergency stop
- gear drive cover (fixed or interlocked)

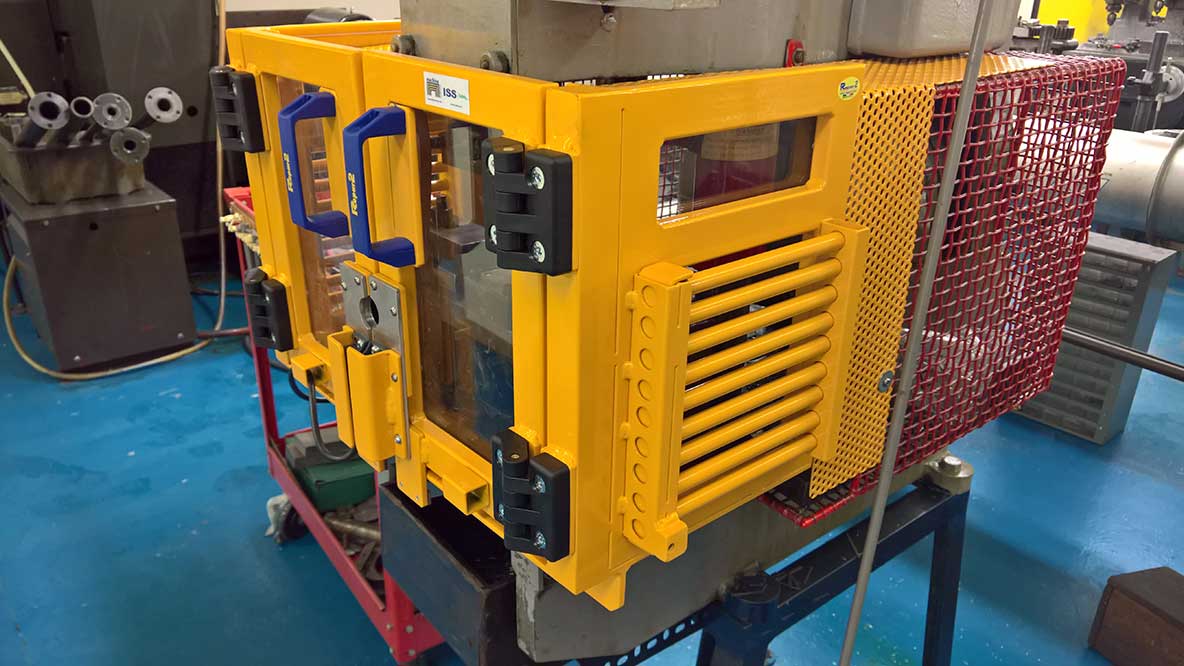

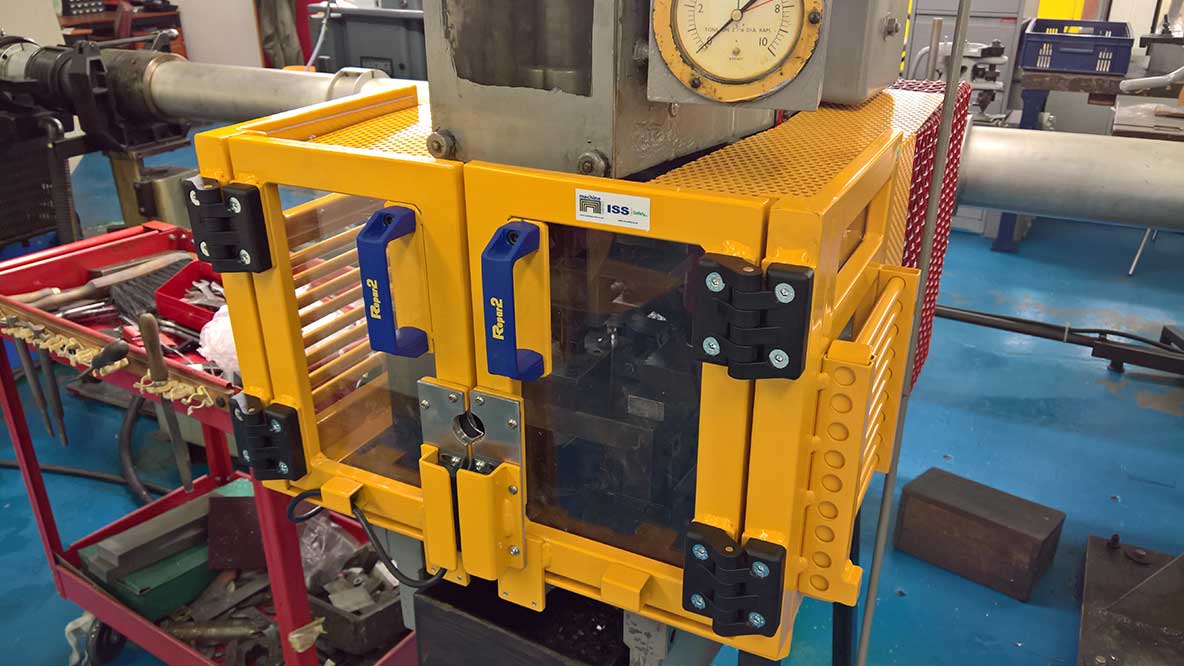

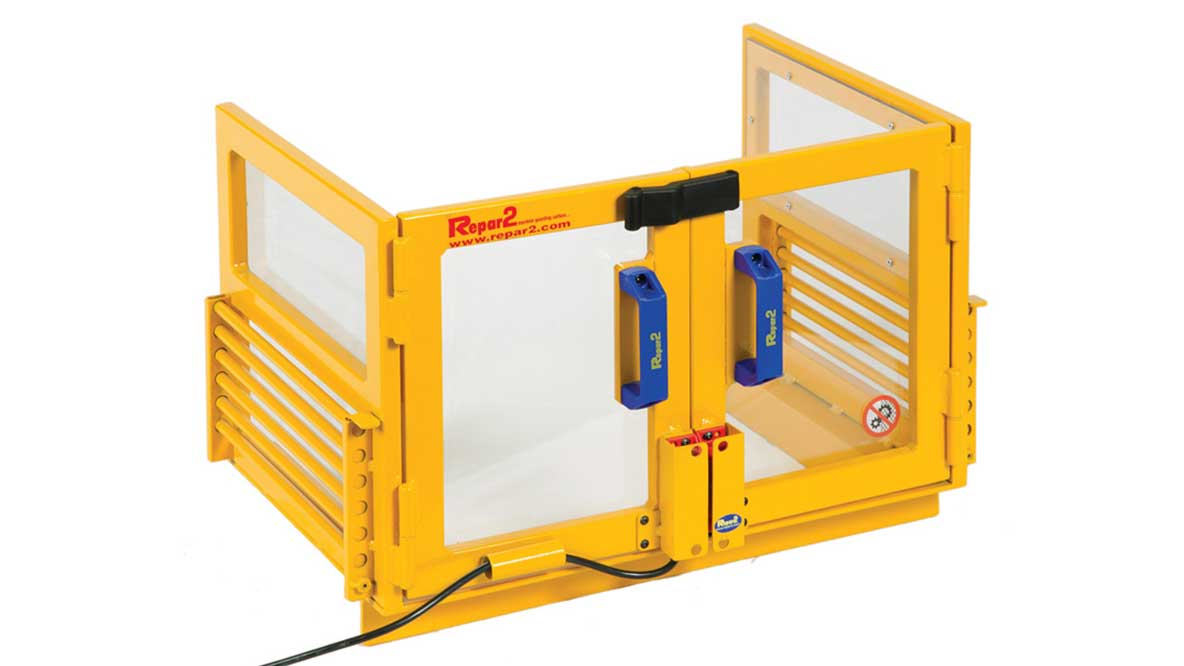

HINGED PRESS GUARD – ‘PP’ MODEL
The Repar2 9PP Eccentric press guard has double door arrangement. They are generally manufactured to suit your particular requirements but there are four models available as standard for selective presses. The steel-framed doors with impact-resistant polycarbonate windows are held in place with an easy to use latch. Both sides of the guard have extendable steel bars which allow workpieces of different sizes to be processed.

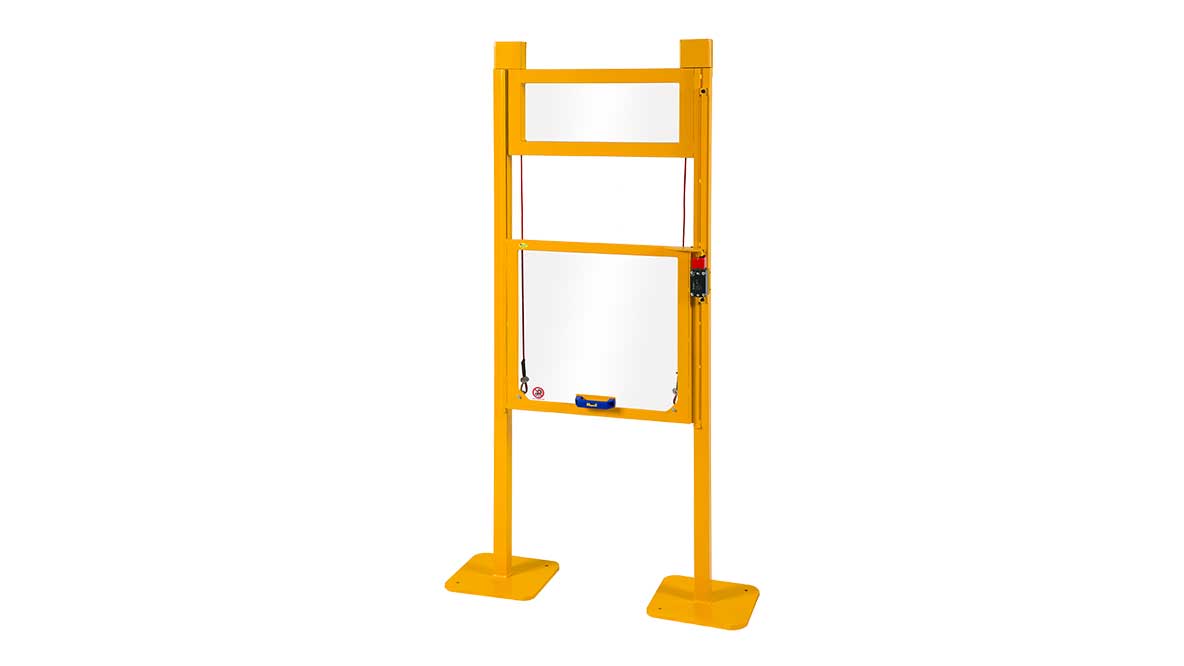

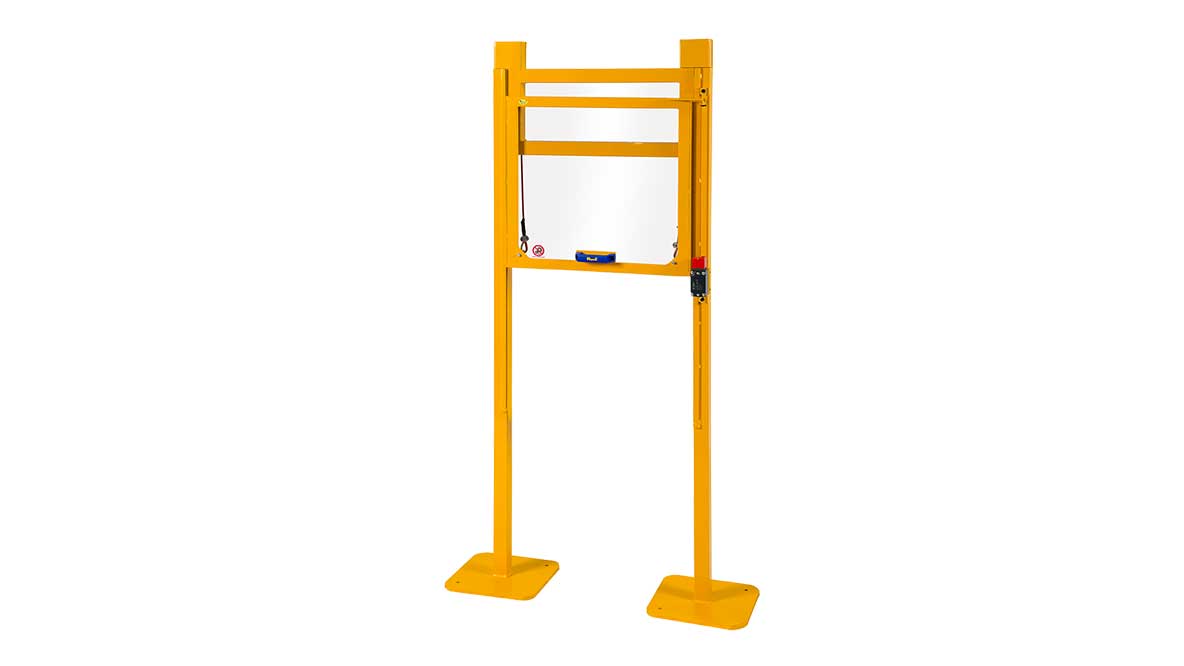

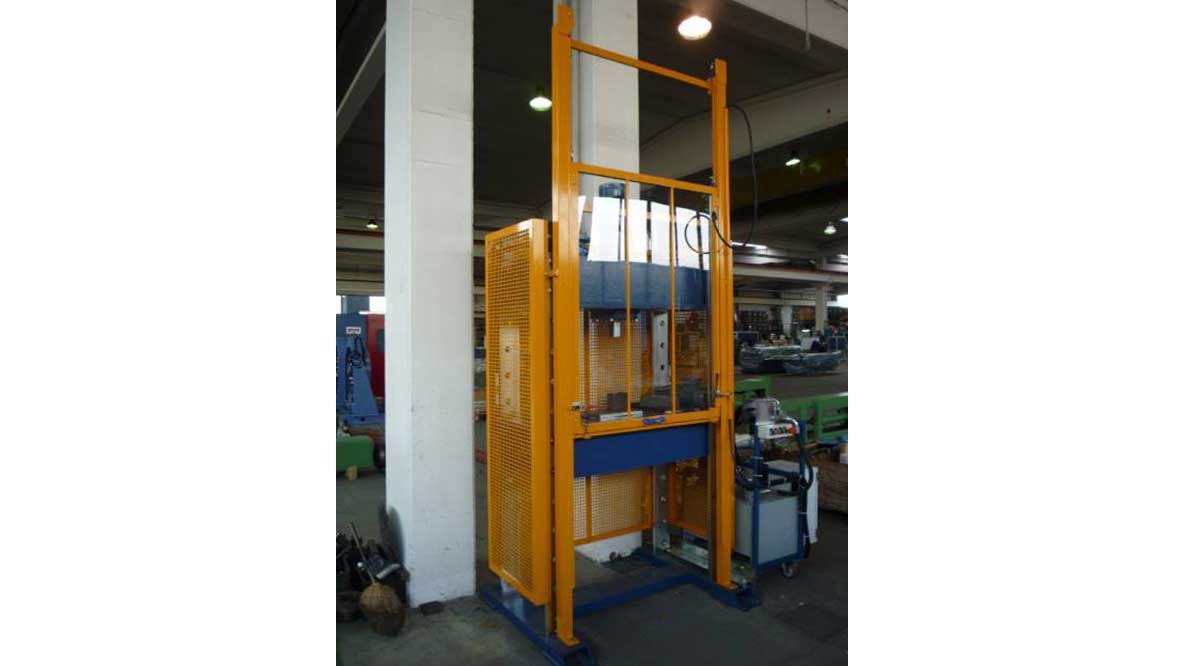

VERTICAL SLIDING PRESS GUARD – ‘FVH’ MODEL
Integral safety enclosure with a counterbalance guard that lifts vertically. These are particularly suited to H-frame hydraulic presses. The guards are generally manufactured to suit your particular requirements but some models are available as standard for selected presses. The steel-framed guards with impact-resistant polycarbonate windows can be manufactured so that they bolt directly to the press or they can be floor-standing, bolted to the floor with M12 anchor bolts.
